Professional Q-Switched & Picosecond Laser Tattoo Removal Machine, Triple Wavelength 1064nm 532nm 755nm, Advanced Cooling System for High-Power Tattoo & Pigment Elimination
Product Summary
Q-Switched Nd:YAG Laser Tattoo Removal Machine | Triple Wavelength: 1064nm / 532nm / 755nm | Peak Power > 1.2GW | Integrated Painless Sapphire ICE Cooling System (-5°C to +5°C). Designed for professional clinics and medical spas to achieve rapid clearance of professional and amateur tattoos, traumatic tattoos, and deep pigmented lesions. Engineered with imported German laser rods and Japanese energy capacitors to ensure >10 million stable shots. Backed by 2-year warranty, lifetime free clinical training, and on-demand global technical support – your partner for fast ROI and patient satisfaction.
Why Clinics Choose Laser Tattoo Removal Machine
- High ROI & Fast Treatments: High repetition rate up to 10Hz, large spot size up to 8mm, and 20% higher peak power than standard models. Treat patients faster – up to 3x more sessions per day. Return on investment typically within 3-6 months for a busy clinic.
- Painless Patient Experience: Built-in active thermoelectric cooling (TEC) with sapphire contact window. Eliminates the need for external cooling gels or cryogen sprays. Reduces patient anxiety and increases booking retention.
- Clinical Versatility: Three selectable wavelengths + Pico mode (optional) target black, blue, red, yellow, green, and even resistant white/gray tattoos. Also treats nevus of Ota, café-au-lait spots, and stubborn melasma.
- Built to Last: Imported quartz light guide and military-grade driver board. 2-year full warranty on all parts including laser handpiece and screen. Free loaner device during critical repairs.
- Zero Downtime Logistics: Global shipping via DHL/UPS/FedEx (3-5 business days to EU, US, and Asia). Pre-shipment 48-hour burn-in test, full customs documentation, and free clinical training videos + live Zoom training included.
Clinical Overview & Capabilities

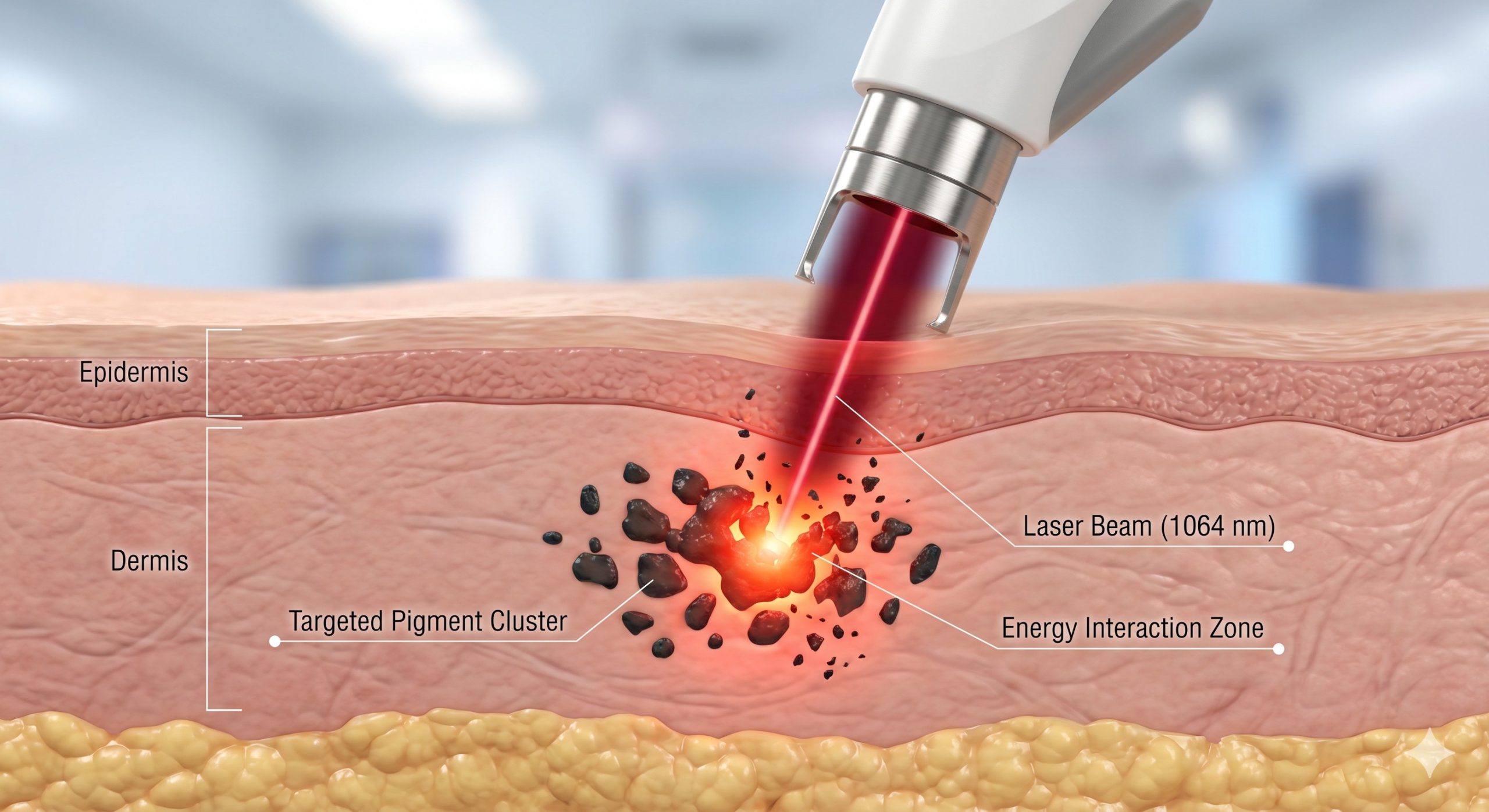

The Q-Switched Nd:YAG laser operates on the principle of selective photothermolysis. Ultra-short pulses (5-20 nanoseconds) generate intense photoacoustic shockwaves that shatter tattoo ink particles and pigment granules into microscopic fragments, which are then naturally eliminated by the body’s lymphatic system without thermal damage to surrounding tissue. The 1064nm wavelength penetrates deep dermis for black/dark blue inks and dermal melanin; 532nm targets red, orange, and yellow pigments in superficial layers; 755nm (optional Alexandrite) is optimal for green, blue, and resistant tattoo inks. Our patented flat-top beam profile ensures uniform energy distribution across the entire spot – no hot spots, no missed areas. Clinical studies show average tattoo clearance in 4-6 sessions (compared to 8-10 with older generation devices). The integrated R-Scan mode automatically detects skin type and adjusts fluence (0.5-12 J/cm²) to prevent post-inflammatory hyperpigmentation, especially critical for Fitzpatrick IV-VI skin types.
Technical Specifications
All parameters calibrated under strict ISO 13485 quality management. Performance data verified by third-party optical power meters.
| Technical Feature | Specification |
|---|---|
| Laser Type | Q-Switched Nd:YAG (Compact solid-state) |
| Wavelengths | 1064nm + 532nm (755nm optional Pico) |
| Pulse Width | 5-20 nanoseconds (Standard QS) / Pico mode: 450ps |
| Peak Power | >1.2GW (at 1064nm, 800mJ, 5ns) |
| Energy (Fluence) | 200mJ – 1600mJ (adjustable per 10mJ) |
| Spot Sizes | 2mm, 3mm, 4mm, 5mm, 6mm, 8mm (zoom handpiece) |
| Repetition Rate | Single shot – 10Hz |
| Cooling System | Active TEC + Sapphire contact window, -5°C to +5°C, adjustable |
| Display | 10.4” industrial-grade TFT color touch screen |
| Power Supply | AC 110V-230V, 50/60Hz, 1500W max |
| Dimensions & Weight | 45cm x 38cm x 105cm, 38kg (cart) + 1.2kg handpiece |
Treatment Areas & Indications
Full Body Tattoo & Pigment Applications
Authorized Treatment Zones: Face (eyebrow microblading removal, eyeliner tattoos), neck, arms, torso, legs, hands, and feet. Maximum spot size 8mm allows fast coverage of large tattoos while 2mm spot achieves precision for fine line and cosmetic tattoos.
Primary Indications
- Professional multi-color tattoos (all ink colors)
- Amateur (homemade) tattoos
- Traumatic tattoos (road rash, graphite)
- Medical tattoos (radiation marks, permanent makeup)
- Pigmented lesions: nevus of Ota, nevus of Ito, Hori’s macules, café-au-lait spots, seborrheic keratosis
- Freckles, age spots (solar lentigo), and ephelides
Frequently Asked Questions
- Q1: Is this laser tattoo removal machine FDA or CE certified? Can you provide documentation for local registration?
- A: Yes, our machine holds CE (MDR Class IIb), FDA 510(k) cleared, and ISO 13485:2016 for the manufacturing facility. We provide free technical file, IFU (Instructions for Use), and Declaration of Conformity in English, Spanish, French, German, Arabic, and Chinese. For specific country registration (e.g., SFDA in Saudi Arabia, COFEPRIS in Mexico, NMPA in China), our compliance team offers paid assistance or full documentation package.
- Q: What is the lifespan of the laser handpiece? How many shots before replacement?
- A: The imported German Nd:YAG crystal and xenon flashlamp are rated for 10 million stable shots under normal clinical use (fluences <10 J/cm²). Actual field data shows average 12-15 million shots before any noticeable energy drop. Replacement flashlamp assembly costs $380 USD and can be swapped by your biomedical engineer in 15 minutes. We also offer a free spare flashlamp with every machine purchase.
- Q: Do you provide clinical training for my staff? Is there any extra fee?
- A: Absolutely. Lifetime free clinical training includes: (1) Pre-shipment: 4-hour video course covering laser physics, parameter settings, and Fitzpatrick skin typing; (2) Post-delivery: one-on-one live Zoom session (90 minutes) with our senior laser trainer to review your first 5 real patients; (3) Ongoing: monthly group webinars on advanced techniques (e.g., resistant inks, scarring prevention). On-site training available for clinics purchasing 2+ units (travel expenses only). No hidden fees.
- Q: What is your warranty and after-sales support for international buyers?
- A: Standard 2-year comprehensive parts & labor warranty (extends to 3 years if you leave a video testimonial). Coverage includes: laser handpiece, screen, motherboard, cooling system, and all cables. We keep a local repair center in Florida (USA), Netherlands (EU), and Dubai (UAE) for fast parts dispatch (2-3 day delivery). For critical failures, we ship a loaner machine within 48 hours while yours is repaired. 24/7 WhatsApp/WeChat technical support with average response < 2 hours.
- Q: I’m starting a new clinic. How many sessions and what pricing can I expect for ROI?
- A: Typical tattoo removal protocol: 6-8 sessions spaced 6-8 weeks apart. Average US clinic charges $200-$400 per session for a small tattoo (4 sq. inches). Assuming 3 patients/day, 20 days/month: monthly revenue = $12,000 – $24,000. Our machine is priced $8,900 – $15,800 depending on wattage (200mj-1600mj) and Pico option. ROI is achieved in 2-4 months of part-time operation. We also provide a free ROI calculator Excel template and sample patient consent forms, fee schedules, and marketing brochures.
