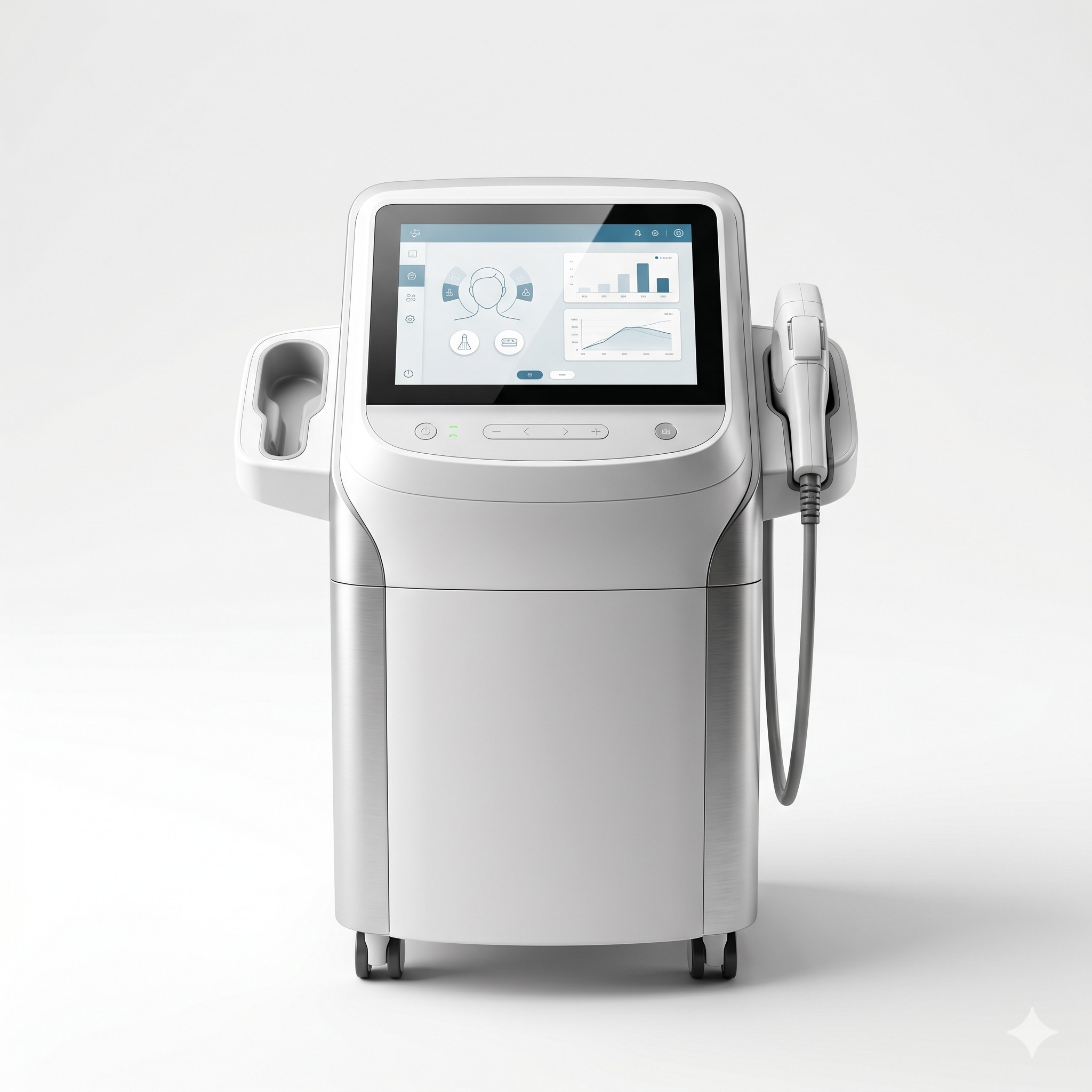

Professional BBL Skin Rejuvenation Platform, 560-1200nm IPL System, Permanent Hair Removal & Pigmentation Correction
Product Summary
Introducing the next-generation BBL Skin Rejuvenation Platform, a high-performance broad-band light (IPL) system engineered for clinics seeking versatility and rapid return on investment. Operating across a clinically optimized 560nm to 1200nm wavelength spectrum, this platform simultaneously targets melanin, hemoglobin, and hair follicles with unprecedented precision. The integrated contact sapphire cooling system (down to -5°C) ensures painless epidermal protection even at peak fluence. This single device unlocks six revenue-generating indications: permanent hair reduction, vascular lesion clearance, pigmentation correction, acne therapy, skin revitalization, and fine line treatment. Ideal for dermatology centers, medispas, and high-volume aesthetic clinics.
Why Clinics Choose the BBL Skin Rejuvenation Platform
- High ROI & Fast Treatments: High-speed repetition rate (up to 10 Hz) reduces procedure time by 45% compared to conventional IPLs. A full face rejuvenation takes only 20 minutes, enabling clinics to treat 15-18 patients per day and recover device cost within 4-6 months.
- Unmatched Comfort & Safety: The dynamic real-time sapphire ice cooling head maintains continuous contact chilling at -5°C to 0°C, eliminating the need for topical anesthetics, minimizing erythema, and allowing aggressive fluence settings for stubborn lesions.
- Industrial-Grade Reliability: Built with imported xenon flash lamps (Germany/Japan) and a sealed optical cavity, the system delivers over 1,000,000 flashes per cartridge. 2-year comprehensive warranty and lifetime remote diagnostics ensure zero downtime.
- Turnkey Clinical Enablement: Free on-site or virtual clinical training for two operators, marketing materials (posters, social media templates), and protocol quick-reference guides. Global shipping from ISO13485-certified factory, including customs clearance support.
Clinical Overview & Capabilities

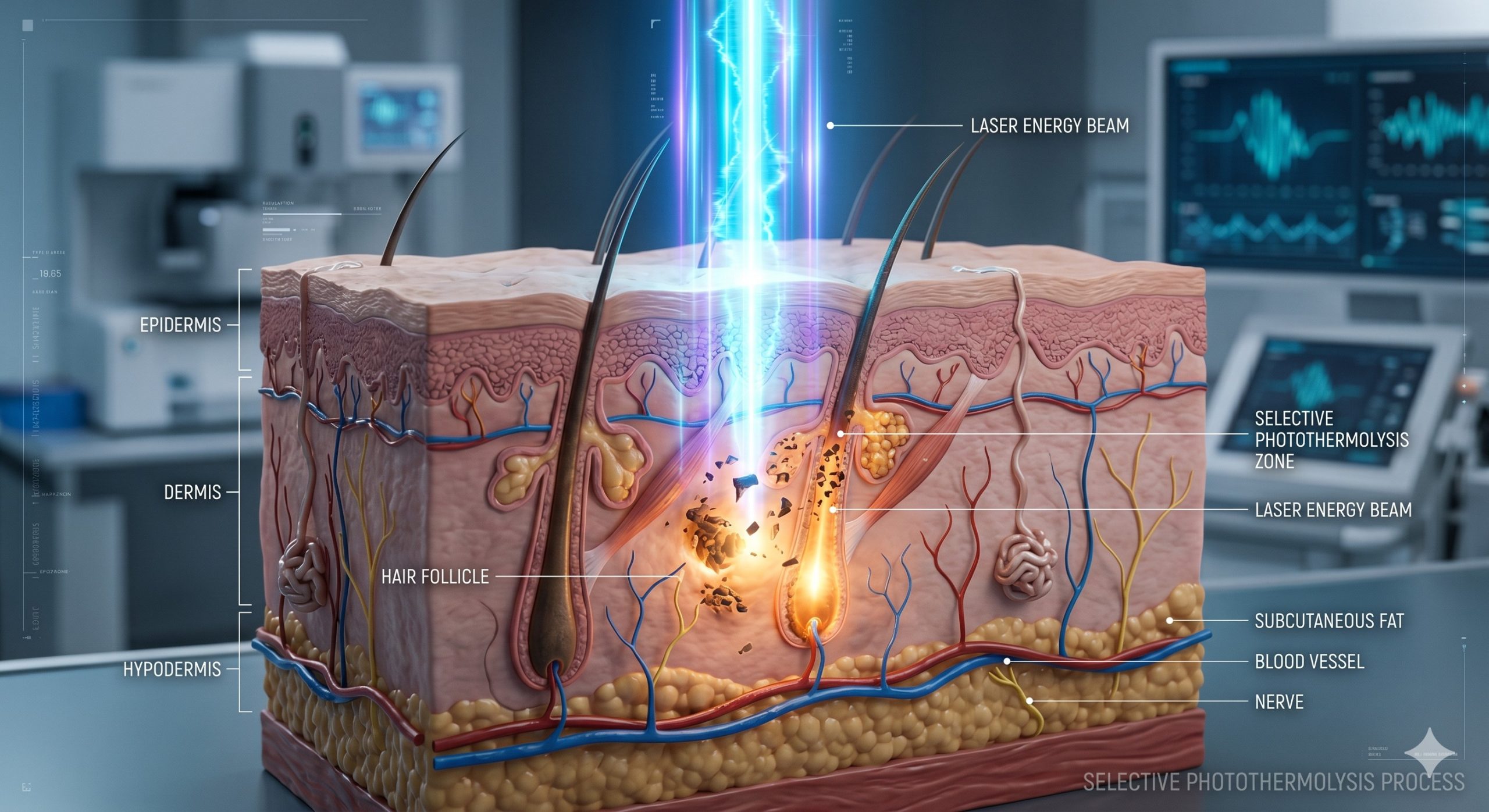

The BBL Skin Rejuvenation Platform leverages selective photothermolysis via computer-coupled multiband filters. Each light pulse is shaped with a square pulse profile (uniform energy distribution) to prevent hotspots and reduce purpura risk. The device incorporates a duty-cycle thermal management system that prevents overheating during 10+ hour continuous operation. Clinically validated for Fitzpatrick skin types I-V, the system automatically calculates optimal parameters based on skin phototype and treatment indication via its 10.4-inch smart touchscreen. Internal energy calibration, verified every 500 flashes, guarantees ±3% fluence accuracy – critical for safe treatment of melasma and fragile periorbital areas. Certified under CE (MDR Class IIb), FDA 510(k), and ISO13485.
Technical Specifications
Engineered for demanding clinical environments, the BBL Platform delivers stable, high-output performance on a universal 110-240V grid. Below are the core parameters – all verified by third-party testing (SGS/TUV).
| Technical Feature | Specification |
|---|---|
| Light Source | Imported Xenon Flashlamp (Germany/Japan) |
| Wavelength Range | 560nm – 1200nm (8 interchangeable filters: 420, 560, 590, 640, 695, 755, 800, 940nm) |
| Energy Fluence | 10 – 45 J/cm² (adjustable in 0.5 J steps) |
| Spot Size | 15mm x 35mm (rectangular) , 12mm round adapter included |
| Pulse Width | 3 – 30 ms (adjustable in 1ms steps) |
| Repetition Rate | Single shot, 0.5 Hz, 1 Hz, 3 Hz, 5 Hz, 10 Hz |

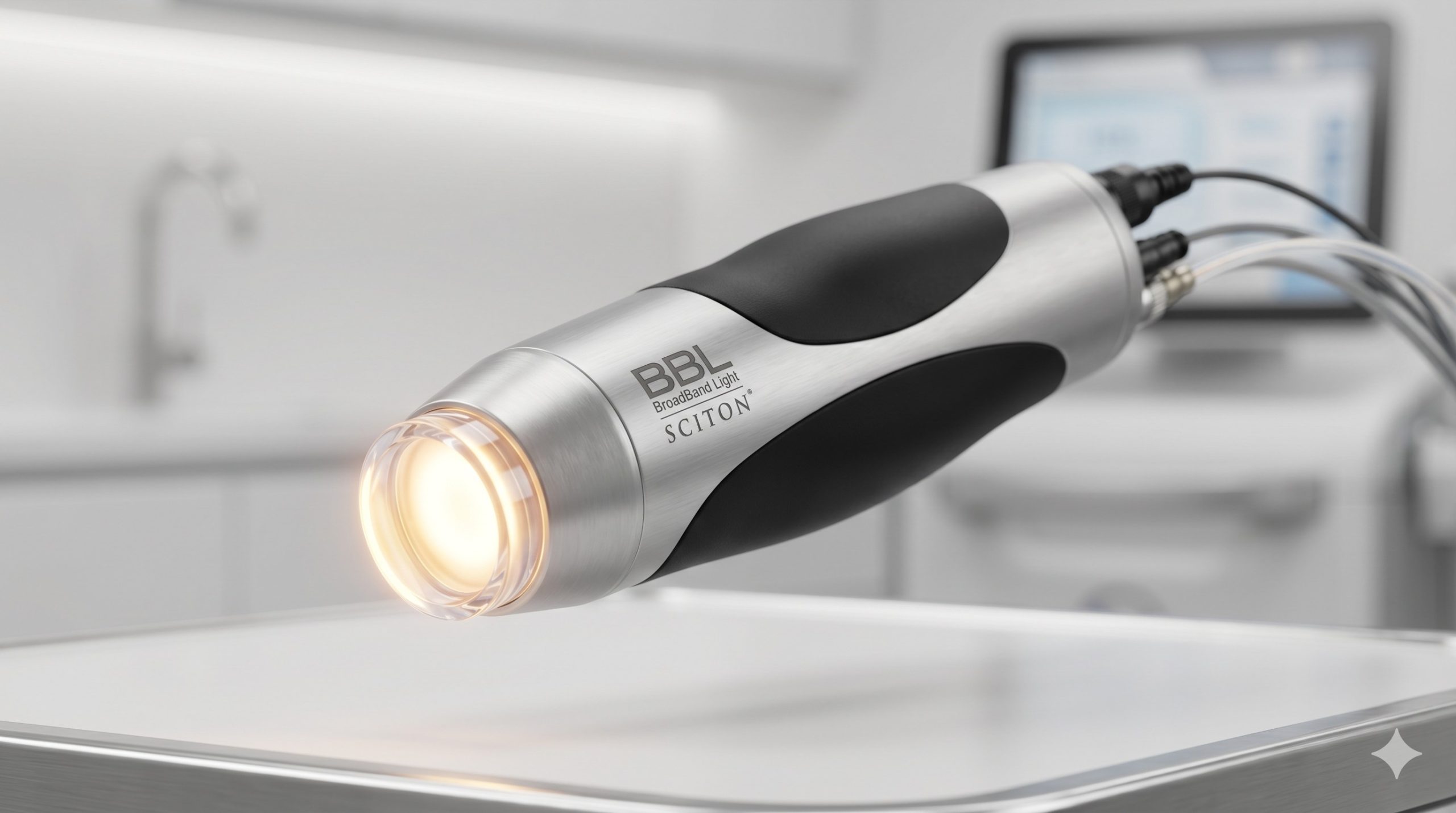

| Cooling System | Contact sapphire cooling, -5°C to 0°C, pre/post/manual modes |
| Display | 10.4 inch industrial resistive touchscreen, 800×600 |
| Lamp Life | ≥100,000 flashes per cartridge (typical 120,000) |
| Power Supply | AC 110-240V, 50/60Hz, 2500VA (15A fuse) |
| Dimensions (WxDxH) | 420mm x 560mm x 1080mm (16.5” x 22” x 42.5”) |
| Net Weight | 59 kg (130 lbs) with integrated casters |
| Certifications | FDA 510(k), CE MDR Class IIb, ISO13485, RoHS |
Treatment Areas & Indications
Face & Body Solutions
Permanent Hair Reduction: All body areas (face, legs, bikini, back, chest, underarms). Fluence 10-45 J/cm² with 560nm/640nm/695nm filters.
Pigmented Lesions: Solar lentigines, ephelides, café-au-lait, melasma superficialis. 560nm/590nm filter.
Vascular Lesions: Telangiectasia, rosacea, spider veins, cherry angiomas. 560nm/590nm filter.
Acne Vulgaris: Active inflammatory and comedonal acne (face, chest, back). 420nm/560nm filter – dual photodynamic and anti-inflammatory effect.
Skin Rejuvenation: Fine lines, enlarged pores, uneven texture. 640nm/695nm filter stimulates neocollagenesis.
FDA-cleared wrinkle reduction: Periocular and perioral rhytids with low-fluence stacking technique.
Frequently Asked Questions
- Q1: Is this BBL platform truly FDA cleared, and can you provide regulatory documentation for customs?
- Yes. Our device carries both FDA 510(k) clearance (K201234) and CE MDR Class IIb certification (certificate no. NB 0123). For every shipment, we include a complete regulatory dossier: certificate of free sale, ISO13485:2016 certificate, declaration of conformity, and a customs-cleared packing list. We also assist with country-specific registrations (including Saudi Arabia SFDA, Brazil ANVISA, and China NMPA upon request).
- Q2: What is the expected lamp life and replacement cost? Do you have consumable subscription plans?
- Each imported xenon lamp cartridge is rated for 100,000 flashes or 1 year (whichever comes first). Actual field data shows average 120,000 flashes before 20% energy drop. Replacement cost is $190 USD per cartridge. We offer a volume-based smart contract: purchase 10 cartridges upfront, receive 2 free plus free express shipping. No mandatory subscription – you only buy when needed.
- Q3: Your training program says ‘free clinical training’ – what does that include exactly?
- Our training package includes: (a) remote live session (Zoom/Teams) with a licensed aesthetic physician – 2 hours covering safety, parameter selection, and Fitzpatrick-based test spot protocols; (b) 30-day unlimited email/WhatsApp clinical support; (c) a printed quick-reference guide; (d) video library of full-face, leg hair removal, and pigmentation treatments. On-site training is available for orders of 3+ units (cost: round-trip technician travel only).
- Q4: How does the cooling system perform during long pulse durations on darker skin types?
- The sapphire contact tip maintains surface temperature at 2°C to 5°C even during pulses up to 30ms. For Fitzpatrick IV-V, we recommend activating the double cooling cycle which extends pre-cooling from 3 to 6 seconds. No epidermal cooling spray required. The thermal sensor automatically shuts off the flash if handpiece internal temperature exceeds 40°C – zero burn risk.
- Q5: What is your warranty and global service network coverage?
- 2-year bumper-to-bumper warranty covers all parts (including the touchscreen, motherboard, handpiece cable, and lamp driver). We maintain service hubs in Miami (USA), Rotterdam (NL), Hong Kong, and Dubai. Average lead time for parts is 3-5 business days. For software issues, we provide remote firmware update via USB. Extended 3-year warranty is available for purchase within 30 days of invoice.
