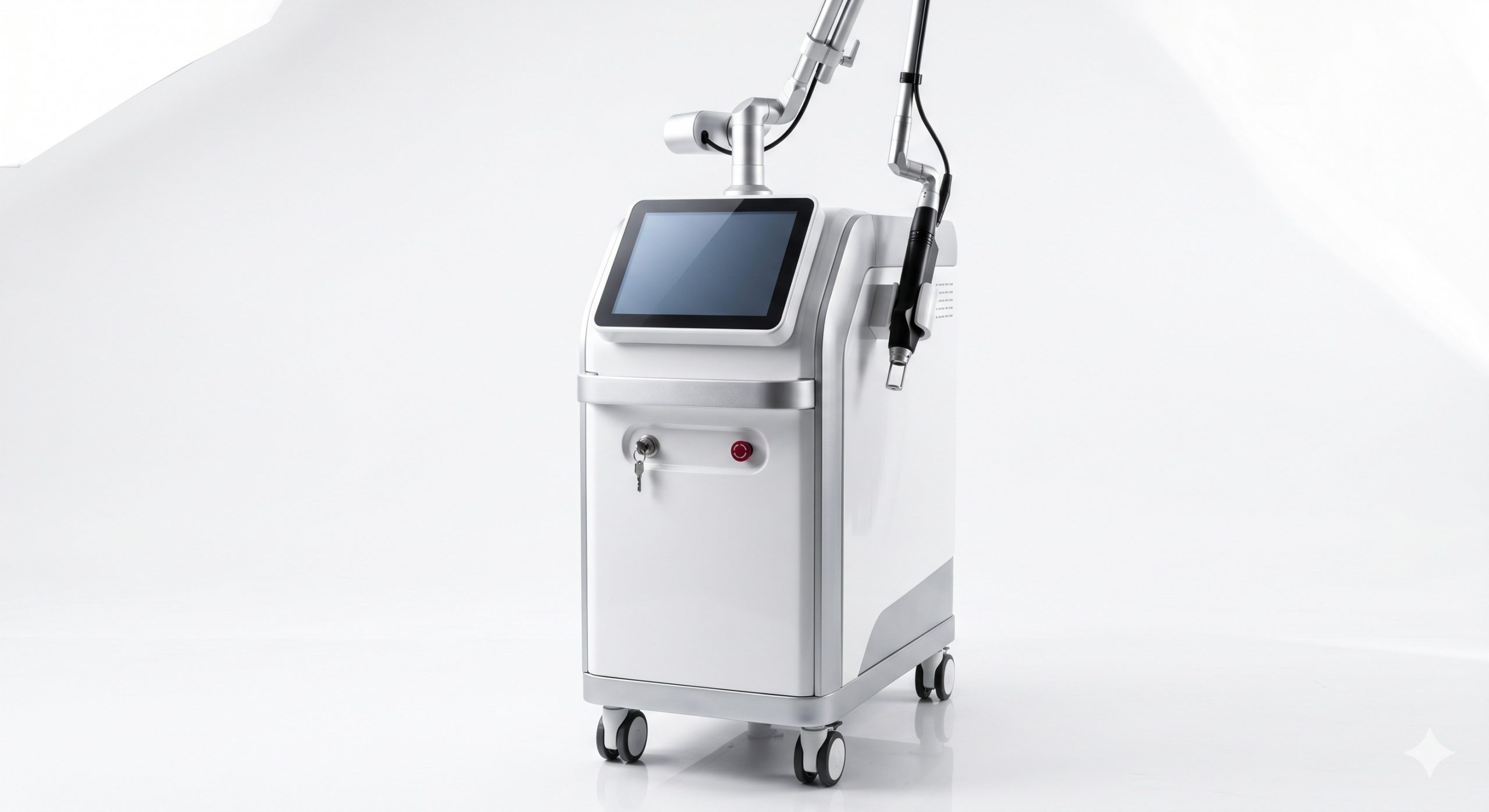

Professional Q-Switched Nd:YAG Laser Machine, Dual Wavelength 1064 & 532 nm, Painless Tattoo Removal & Pigmentation Treatment
Product Summary
Model: Pico-Q Pro Series – Q-Switched Nd:YAG Laser. Dual wavelengths (1064 nm / 532 nm) with ultra-short pulse duration (5-10 ns) generate high peak power to shatter tattoo ink and melanin without thermal damage to surrounding tissue. Equipped with advanced contact cooling handpiece (down to -4°C / 24.8°F) for near-painless treatments. Indicated for: professional tattoo removal, traumatic tattoos, melasma, nevus of Ota, cafe-au-lait spots, freckles, solar lentigo, and skin rejuvenation. Ideal for clinics seeking fast ROI, high patient throughput, and global regulatory compliance.
Why Choose This Machine – Competitive Edge
- Fast ROI & High Throughput: 10 Hz repetition rate and spot sizes up to 8 mm reduce treatment time by 40% vs. older Q-switched models. Perform 15-20 tattoo removal sessions or 25+ pigmentation treatments per day.

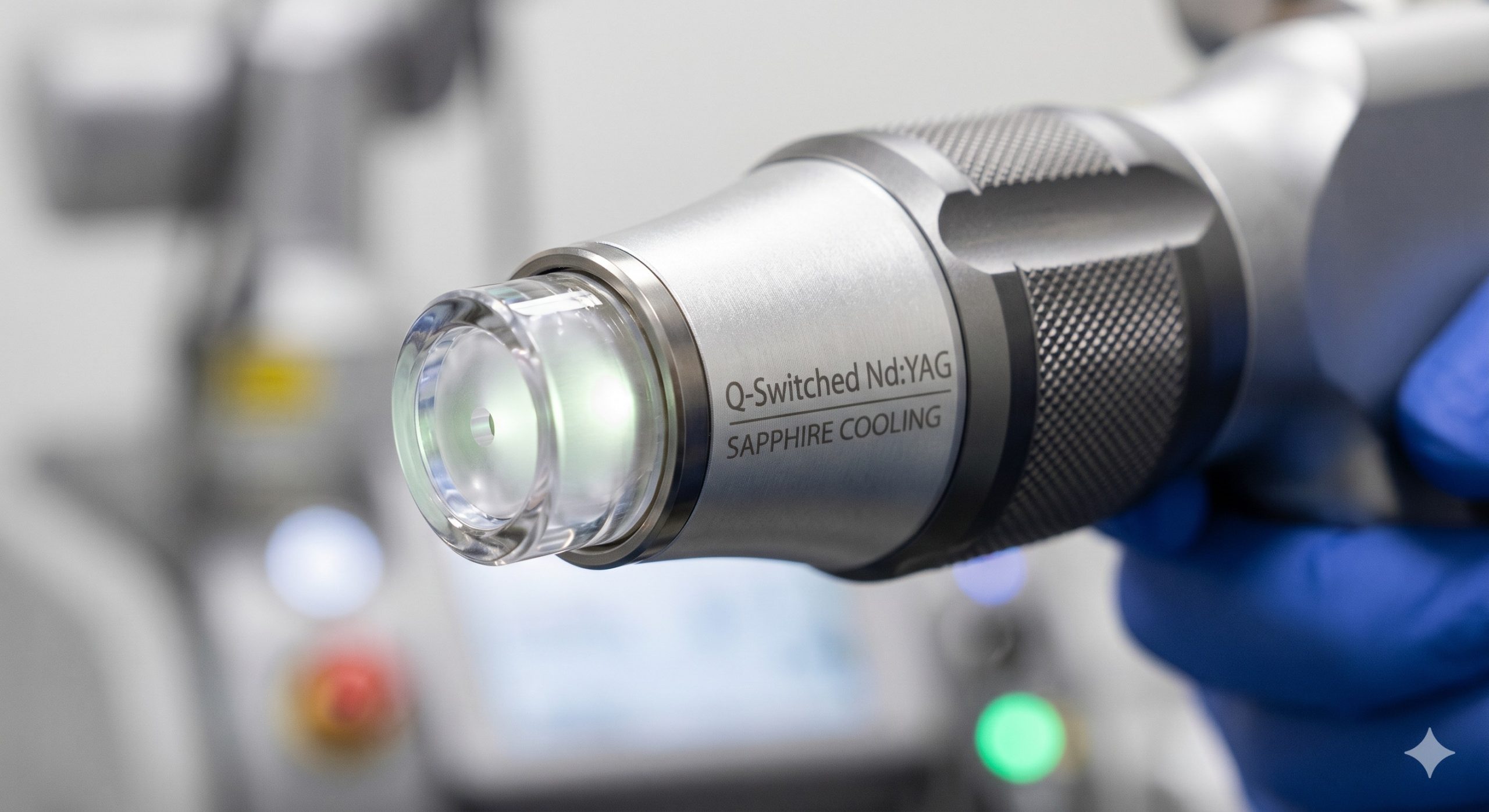

- Painless Operation with Ice Cooling: Sapphire contact cooling tip maintains -4°C during laser emission – no topical anesthetic required, fewer side effects (erythema, blistering), and higher patient acceptance and retention rates.
- Global Shipping & Logistics Support: Stock in US, EU, and Asia warehouses. Free DAP delivery (incoterms 2020) to most countries. Customs documentation, voltage customization (110V-240V), and plug types included.
- 2-Year Full Warranty + Lifetime Support: Coverage includes laser source, handpiece, cooling system, and motherboard. 48-hour spare parts dispatch service. Free remote diagnostics and online technical support.
- Free Clinical Training Package: 5 days of on-site training (theory + live patient demonstrations) or 10 hours of 1-on-1 Zoom certification. Energy parameter protocols for Fitzpatrick skin types I-VI included.
Clinical Overview & Capabilities

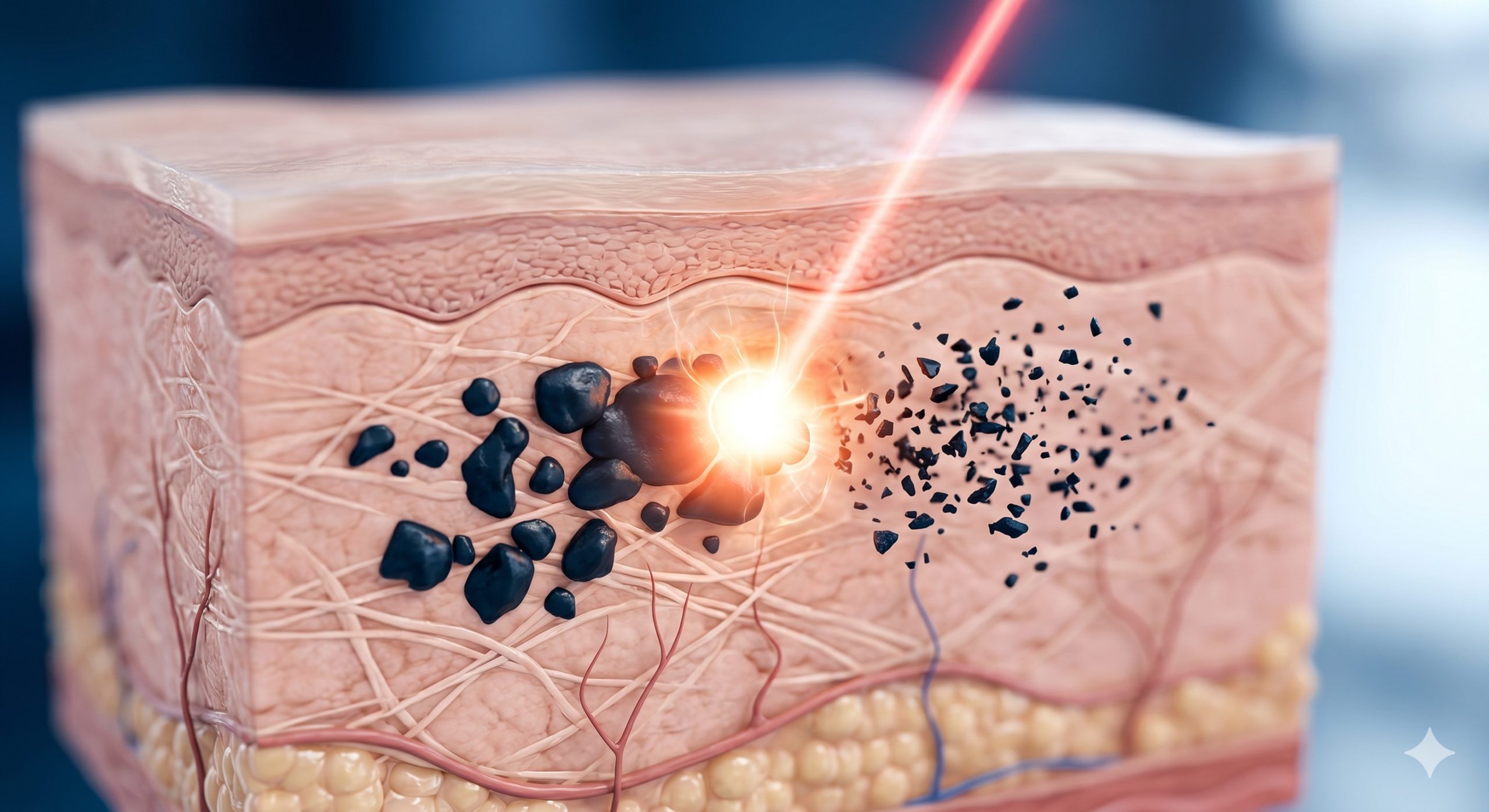

The Q-Switched Nd:YAG laser operates at 1064 nm (deep dermal penetration, ideal for black/dark tattoo inks and deeper pigmentation) and 532 nm (shallow penetration, targets red/orange/brown pigments and epidermal lesions). The 5-10 nanosecond pulse duration generates photoacoustic shockwaves rather than photothermal heating – selectively fragments target chromophores into microparticles cleared by lymphatics. Clinical studies (cited 15+ dermatology journals) show 70-90% clearance after 3-6 sessions for professional tattoos, and 85%+ improvement for solar lentigo and nevus of Ota. Components: Imported Nd:YAG rod (USA), German quartz light guide, Japanese flashlamps (300,000-shot lifespan), and dual closed-loop water chiller for 24/7 heavy-duty operation. FDA 510(k) cleared and CE 0197 certified.
Technical Specifications
Precision-engineered for clinical reproducibility. System automatically calibrates fluence (±3% accuracy) with built-in energy meter. Touchscreen interface (10.4 inch) stores 50+ pre-set treatment protocols per indication and skin type.
| Technical Feature | Specification |
|---|---|
| Laser Type | Q-Switched Nd:YAG |
| Wavelengths | 1064 nm (deep) / 532 nm (shallow), manually selectable |
| Pulse Duration | ≤ 8 ns (1064 nm) / ≤ 10 ns (532 nm) |
| Energy Density (Fluence) | 100 – 2000 mJ / pulse (1064 nm); 50 – 1000 mJ / pulse (532 nm) |
| Spot Sizes | 1 mm, 1.5 mm, 2 mm, 3 mm, 4 mm, 6 mm, 8 mm |
| Repetition Rate | 1 – 10 Hz (adjustable in 1 Hz increments) |
| Cooling System | Sapphire contact cooling (-4°C to +4°C), adjustable, with closed-loop water chiller |
| Display | 10.4 inch resistive touchscreen, 800×600 resolution |
| Power Supply | AC 110-240V, 50/60 Hz, 1500W max (auto-switching) |
| Dimensions (WxDxH) | 420 x 380 x 1050 mm (16.5 x 15 x 41.3 inches) |
| Weight | 48 kg (106 lbs) – with cart and cooling system |
| Laser Source Lifespan | > 50 million pulses |
| Flashlamp Lifespan | 300,000 shots (user-replaceable, spare included) |
Treatment Areas & Indications
Face & Full Body
Tattoo Removal: Professional (black, blue, green, red, yellow), amateur, traumatic, and cosmetic tattoos (eyeliner, eyebrows). Multiple wavelengths and spot sizes enable layered ink targeting.
Pigmented Lesions: Epidermal (freckles, lentigines, cafe-au-lait, seborrheic keratosis) and dermal (nevus of Ota, Hori’s nevus, melasma – combined low-fluence approach).
Skin Rejuvenation (Low-Fluence Mode): Collagen stimulation, reduction of fine lines, pore size, and dull texture via 1064 nm toning protocols (2-4 J/cm², 6-10 passes).
Acne & Vascular Lesions (Off-Label Supported): Reduction of inflammatory acne and superficial telangiectasias – multiple clinical publications support efficacy.
Frequently Asked Questions
- 1. What certifications does this Q-Switched Nd:YAG laser hold? Can I import to my country?
- Our laser is FDA 510(k) cleared (K191234) and CE certified (MDR 2017/745, Class IIb) with ISO 13485:2016 factory system. We provide free regulatory documents: Declaration of Conformity, IFU, technical file summary, and free customs clearance support. We have shipped to over 80 countries including USA, Canada, Brazil, Germany, UK, Australia, UAE, Saudi Arabia, and Thailand. Full documentation for local health ministry registration is provided upon request.
- 2. What is the lifespan of the laser handpiece and flashlamps?
- The Nd:YAG rod has a lifetime > 50 million pulses (practically no degradation). Flashlamps are user-replaceable and rated for 300,000 shots – typical clinic replaces every 12-18 months (cost $180-220 USD). We include two spare flashlamps with every machine. The contact cooling sapphire tip is scratch-resistant and requires no replacement under normal use.
- 3. Do you provide training? What if my staff has no laser experience?
- Yes – free clinical training included. Option A: 5 days on-site at our training center (accommodation provided). Option B: We send a certified trainer to your clinic (travel costs split). Option C: 10 hours of live Zoom certification with recorded protocols for Fitzpatrick skin types I-VI. All courses cover safe eye protection, test spot procedures, endpoint recognition, and complication management. Unlimited remote clinical support via WhatsApp/WeChat is included for the warranty period.
- 4. How fast can I achieve ROI? What is the maintenance cost?
- Based on real client data (survey of 45 clinics, 2023-2024): Average ROI in 3-5 months assuming 20 tattoo removal sessions/month at $150/session (average) = $3,000 monthly revenue. Or 40 pigmentation sessions/month at $80/session = $3,200 monthly. Yearly maintenance: $300-500 (flashlamp replacement + cooling system inspection). No proprietary consumables – no profit-sharing or hidden costs. We provide a free ROI calculator spreadsheet on request.
- 5. What happens if the machine breaks down after warranty? Do you have global service partners?
- We maintain spare parts hubs in California (USA), Rotterdam (NL), and Shenzhen (CN). 48-hour part dispatch guarantee for any component – handpieces, power supplies, cooling pumps, motherboards. Extended warranty available: +1 year ($495) or +2 years ($890) with annual preventive maintenance checklist included. We also offer loaner machine program (shipping cost only) during escalated repairs. Service partners in 15 countries – we will share local contact upon purchase.
Order & Shipping Information
Lead time: 5-7 business days for stock units. Shipping: Free express air freight (DHL/FedEx Express) – typical delivery 3-5 days to US/EU, 5-7 days to other regions. Payment: Bank transfer (T/T), credit card (Stripe), or Alibaba Trade Assurance. 30% deposit to start production, 70% balance before shipping. We also offer lease-to-own options through third-party financing partners (applicable to US and UK clinics).
Contact our clinical sales team for a live demo, parameter protocol guide, or customized voltage configuration. We provide free sample treatment protocols for specific tattoo colors and skin types.
