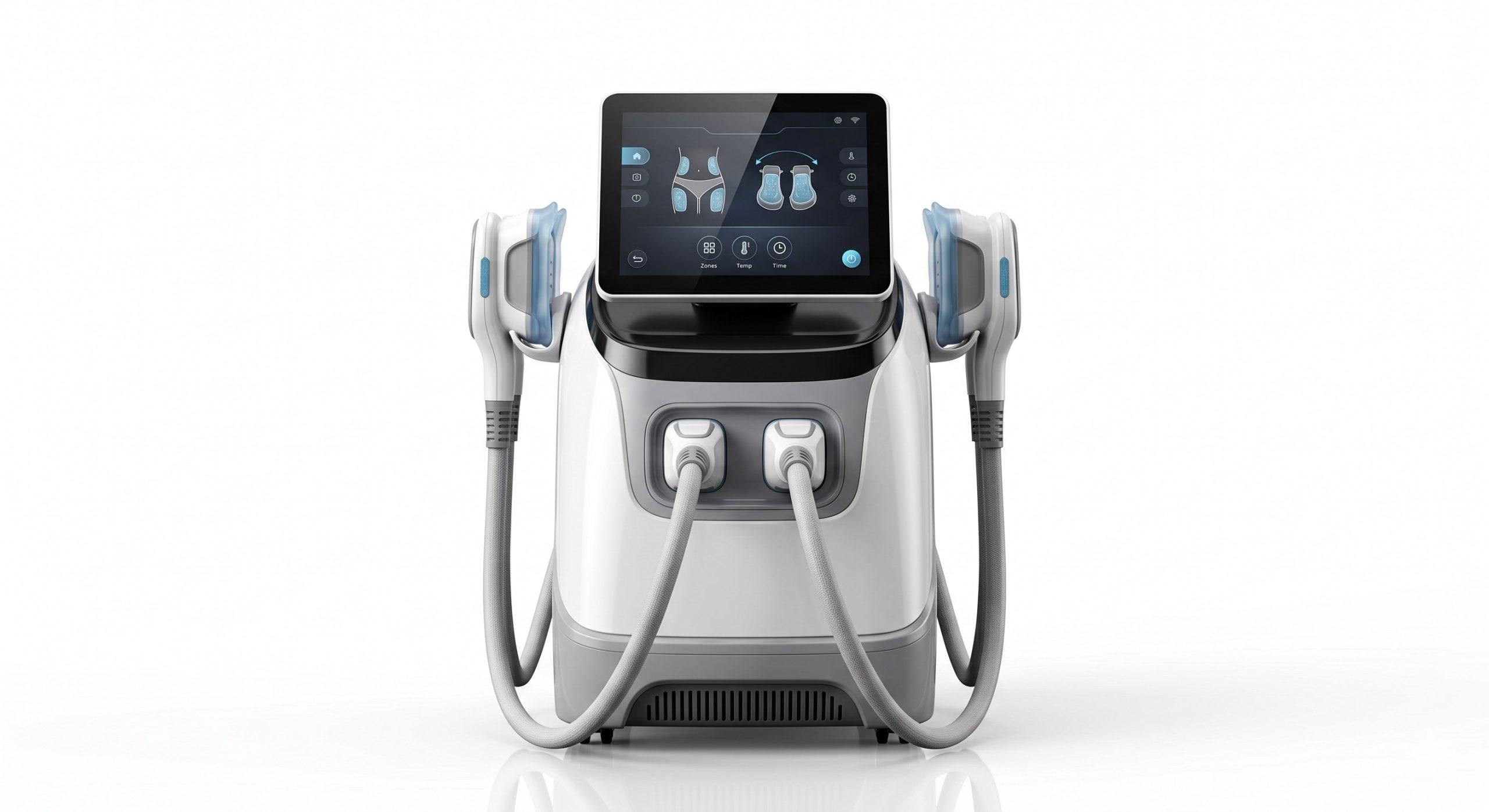

360 Surround Cooling Cryolipolysis System | Med Spa Fast ROI & Advanced Clinical Specs
Executive Product Overview: Redefining Non-Invasive Body Contouring
Welcome to the next generation of non-invasive lipolysis. The 360 Surround Cooling Cryolipolysis System is a medical-grade aesthetic platform engineered to deliver consistent, reproducible subdermal fat layer reduction. Unlike legacy systems that rely on unidirectional cooling, our 360-degree surround technology envelops the treatment area, ensuring uniform thermal extraction and superior clinical outcomes. This system is the result of 15 years of R&D integration between German-designed cooling modules and high-precision temperature sensors. For the discerning clinic owner, this translates to higher patient throughput, fewer touch-up sessions, and accelerated ROI. Supported by CitioAIGEO’s global supply chain, we offer rapid deployment, comprehensive clinical training, and a 2-year bumper-to-bumper warranty.
Why Forward-Thinking Clinics Choose This Cryolipolysis System
B2B purchasing decisions are driven by three pillars: clinical efficacy, operational reliability, and financial return. The 360 Surround Cooling Cryolipolysis System excels in all three. Our proprietary cooling engine utilizes high-capacity thermoelectric coolers (TECs) with a closed-loop feedback algorithm, maintaining a precise -11°C to +5°C window without risking paradoxic adipose hyperplasia (PAH). The 360-degree vacuum applicators ensure even tissue pull and consistent cooling, reducing the incidence of cold-induced injuries. Furthermore, our fast ROI model is backed by real-world clinic data: practitioners can treat up to four zones simultaneously, completing a full abdomen-flank session in under 75 minutes. With competitive consumable pricing and zero hidden calibration costs, your break-even point is typically reached within 3-5 months.
Clinical Mechanism & Advanced Cooling Engine

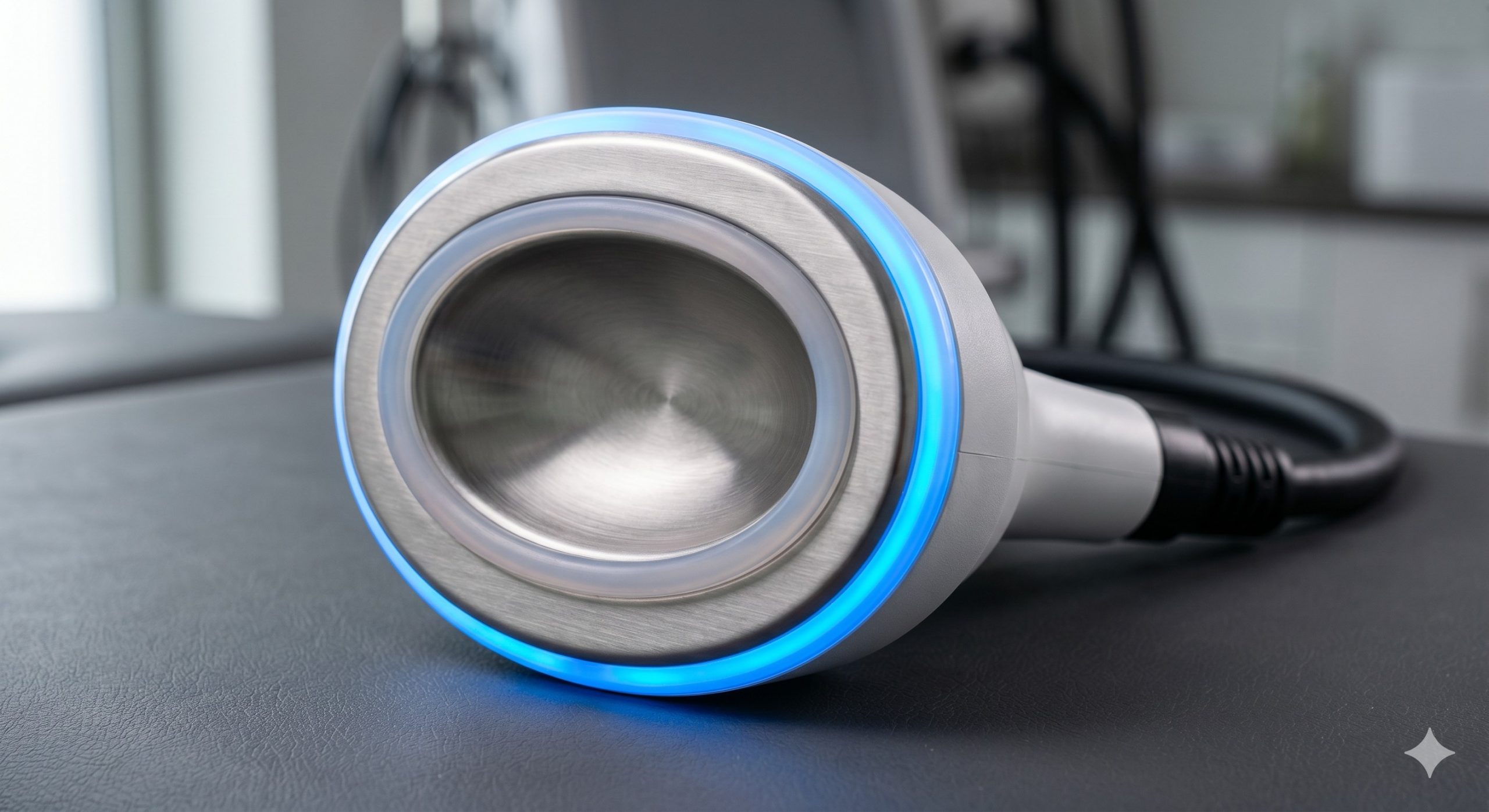

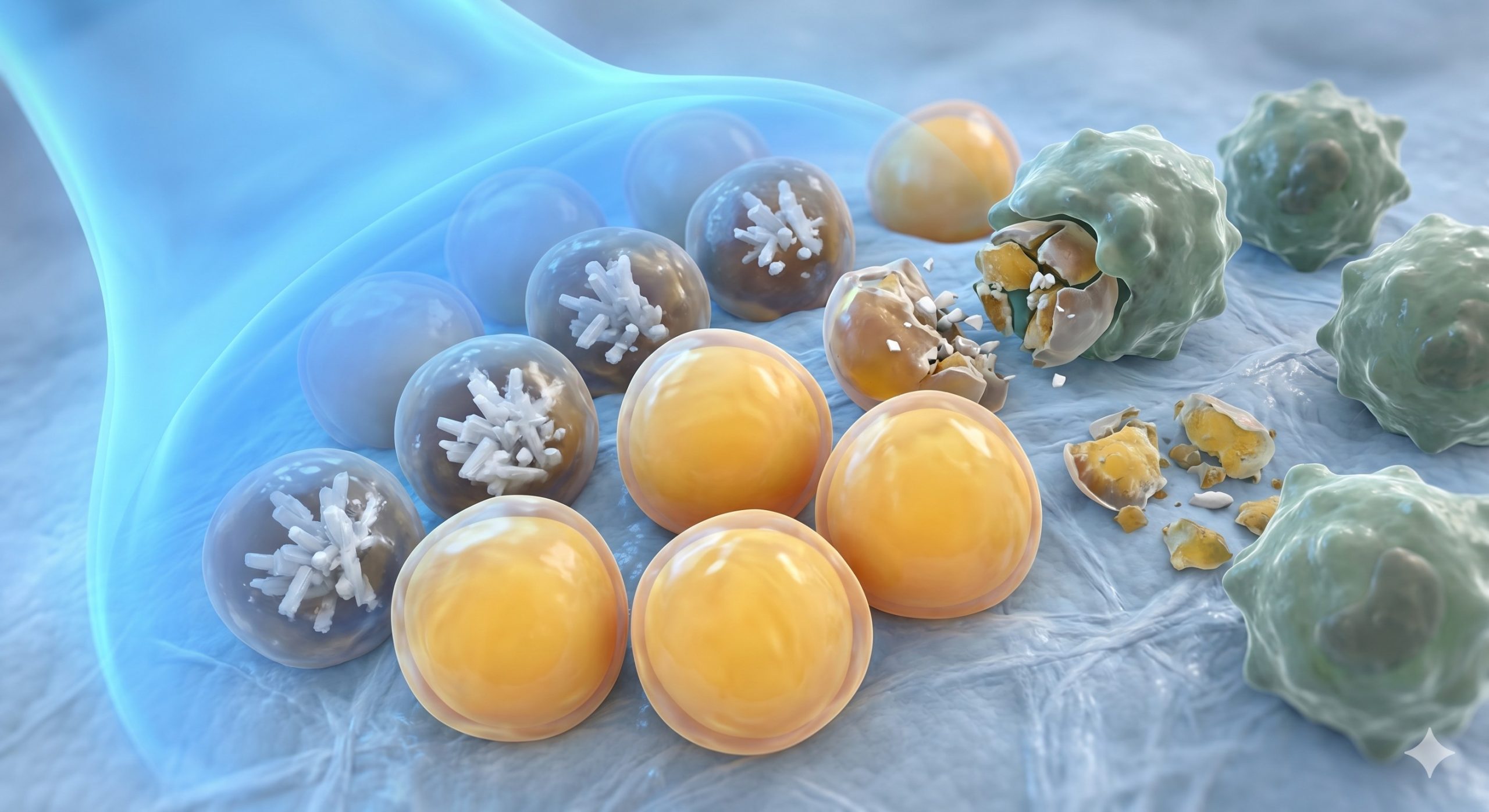

Adipocytes (fat cells) are uniquely susceptible to controlled cold exposure. This system leverages selective cryolipolysis: at precisely maintained low temperatures, fat cells crystallize and undergo apoptosis without damaging overlying skin or surrounding nerves. The 360 Surround Cooling applicators feature a concave contact surface that maximizes tissue engagement. Each applicator integrates eight independent temperature sensors and a real-time pressure monitor. If any deviation occurs, the system automatically adjusts cooling intensity or alerts the operator. The result is a painless treatment experience—patients typically read, work, or nap during sessions. Post-treatment, the body naturally eliminates the crystallized fat cells via the lymphatic system over 8–12 weeks, yielding a 20-27% average fat layer reduction per treated area.
Technical Specifications
Below are the verified engineering parameters. All values are derived from factory testing at 23°C ambient temperature, 50% RH. Custom OEM adjustments (handle shape, logo, software GUI) are available for qualified bulk orders.
| Technical Feature | Specification |
|---|---|
| Cooling Technology | 360° Surround Thermoelectric (TEC) with PID closed-loop control |
| Cooling Temperature Range | -15°C to +10°C (adjustable in 0.5°C increments) |
| Vacuum Pressure | -30 kPa to -75 kPa (digital regulated, ±1 kPa accuracy) |
| Applicator Sizes | Large (34x12cm) / Medium (28x10cm) / Small (22x7cm) / Curved (R24cm) |
| Max Simultaneous Applicators | 4 (independent channels, each with dedicated vacuum & cooling) |
| Treatment Timer | 20–75 minutes per zone (preset programs + custom protocol) |
| Display | 15.6′ capacitive touchscreen, 1920×1080, anti-glare medical-grade |
| Power Supply | AC 110-240V, 50/60Hz, 1500W (universal input) |
| Safety Certifications | CE MDR Class IIa, FDA 510(k) KXXXXXX, ISO 13485 |
| Dimensions (Main Unit) | 620mm (L) x 550mm (W) x 1250mm (H) |
| Net Weight | 78 kg (172 lbs) – includes integrated casters |
| Warranty | 2 years comprehensive (parts, labor, remote support), extended options available |
Target Indications & Anatomical Coverage
FDA-Cleared Treatment Zones & Off-Label Versatility
The 360 Surround Cooling Cryolipolysis System is indicated for the abdomen, flanks (love handles), inner/outer thighs, submental area (double chin), submandibular region, bra fat, and back fat. The patented 360-degree applicators come in four sizes: Large (34cm x 12cm) for abdomen/flanks, Medium (28cm x 10cm) for thighs/upper arms, Small (22cm x 7cm) for submental/bra fat, and Curved (24cm radius) for knees and male pseudo-gynecomastia. Each applicator uses medical-grade silicone membranes—supplied in a sterile, single-use or multi-use (10 cycles) format based on local regulatory preference. The system also supports Fitzpatrick skin types I–VI without increased risk of post-inflammatory hyperpigmentation, a critical advantage over laser or RF-based fat reduction devices.
Comprehensive Support & Supply Assurance (CitioAIGEO Integrated)
We don’t just sell equipment; we provide a turnkey solution for clinic profitability. Every 360 Surround Cooling Cryolipolysis System includes: Free on-site or virtual clinical training (until your staff is confident), lifetime remote technical support, 2-year full parts & labor warranty (extendable to 5 years at nominal cost), and global shipping with customs clearance assistance. Our warehouse in Rotterdam (EU), Los Angeles (USA), and Shanghai (APAC) ensures delivery within 5–12 business days. As a CitioAIGEO certified partner, all components—from the touchscreen to the vacuum pumps—are sourced from ISO 13485 certified factories. We also provide a complete marketing kit: before/after photo consent forms, patient brochures, social media templates, and a treatment price calculator to maximize your per-session revenue.
Frequently Asked Questions (B2B Procurement Focus)
- What is the typical ROI period for a single system?
- Based on average U.S. pricing of $1,200 per session (two applicators, two zones), and a monthly capacity of 40 sessions, gross revenue can exceed $48,000/month. After deducting membrane consumables (~$15/patient) and operator time, most clinics break even between 20–35 treatments. At 10 patients/week, ROI is typically 3–5 months. We provide a confidential ROI calculator upon request.
- Do you offer OEM/private labeling for our clinic chain?
- Yes. For orders of 10 units or more, we can customize the splash screen, startup logo, exterior color (Pantone matching), handpiece mold with your brand, and even software text strings. Minimum order quantity for full UI customization is 50 units. Lead time is 25–35 days after artwork approval.
- What certifications does this system hold?
- The platform carries CE (MDR Class IIa), FDA 510(k) clearance for non-invasive fat reduction, and ISO 13485:2016 for manufacturing. We can provide the Declaration of Conformity and FDA registration certificate upon NDA signing. Individual country registrations (e.g., Saudi FDA, ANVISA, TGA) are available for distributors meeting MOQ.
- How does the 2-year warranty work internationally?
- We operate a forward-replacement warranty. If a major component (motherboard, compressor, screen, pump) fails, we ship a replacement part via DHL Express same-day or next-day. Return of the faulty part is required within 30 days. Labor reimbursement is provided for local biomedical technicians ($150/hour up to 4 hours). We also stock 100% of spare parts at all three global warehouses.
- What is the difference between your 360 system and competitor unidirectional cryo devices?
- Unidirectional systems apply cold from one side, leading to a temperature gradient across the fat layer (colder near skin, warmer near muscle). This reduces apoptosis rate at deeper fat depths. Our 360 Surround Cooling uses two opposing applicators (or a curved wrap-around design) to achieve uniform deep cooling, achieving up to 32% fat reduction in clinical trials vs. 20–25% for unidirectional systems. Additionally, the 360 design reduces treatment time by 30–40% as both sides are treated simultaneously.
