High-Frequency Body Sculpting Module – Official Clinical Overview & Technical Datasheet

EXECUTIVE SUMMARY

The High-Frequency Body Sculpting Module represents a paradigm shift in non-invasive adipose tissue remodeling. Leveraging a proprietary high-frequency electromagnetic field (HF-EMF) generator combined with a forced-air and contact cooling system, this device is engineered to induce supramaximal muscle contractions and selective fat apoptosis. This datasheet provides a comprehensive clinical and technical overview for procurement and integration into premium aesthetic practices. The module is designed for deployment in medical spas and dermatology clinics seeking a high-ROI, low-downtime body contouring solution.

CLINICAL ARCHITECTURE & DESIGN

The system architecture is built around a Class 4 high-frequency energy source capable of delivering up to 300 W of power to deep tissue layers. The primary mechanism of action involves the application of a high-intensity, high-frequency electromagnetic field that penetrates the dermis and subcutaneous fat to a depth of 7 cm. This induces rapid oscillations in muscle fibers, causing intense contractions (supramaximal muscle contractions) that are not achievable through voluntary exercise. Simultaneously, the energy induces thermal stress in adipocytes, triggering apoptosis and subsequent clearance via the lymphatic system. The cooling engine ensures epidermal protection, maintaining surface temperatures below 15°C to ensure patient safety and comfort throughout the 30-minute treatment cycle.

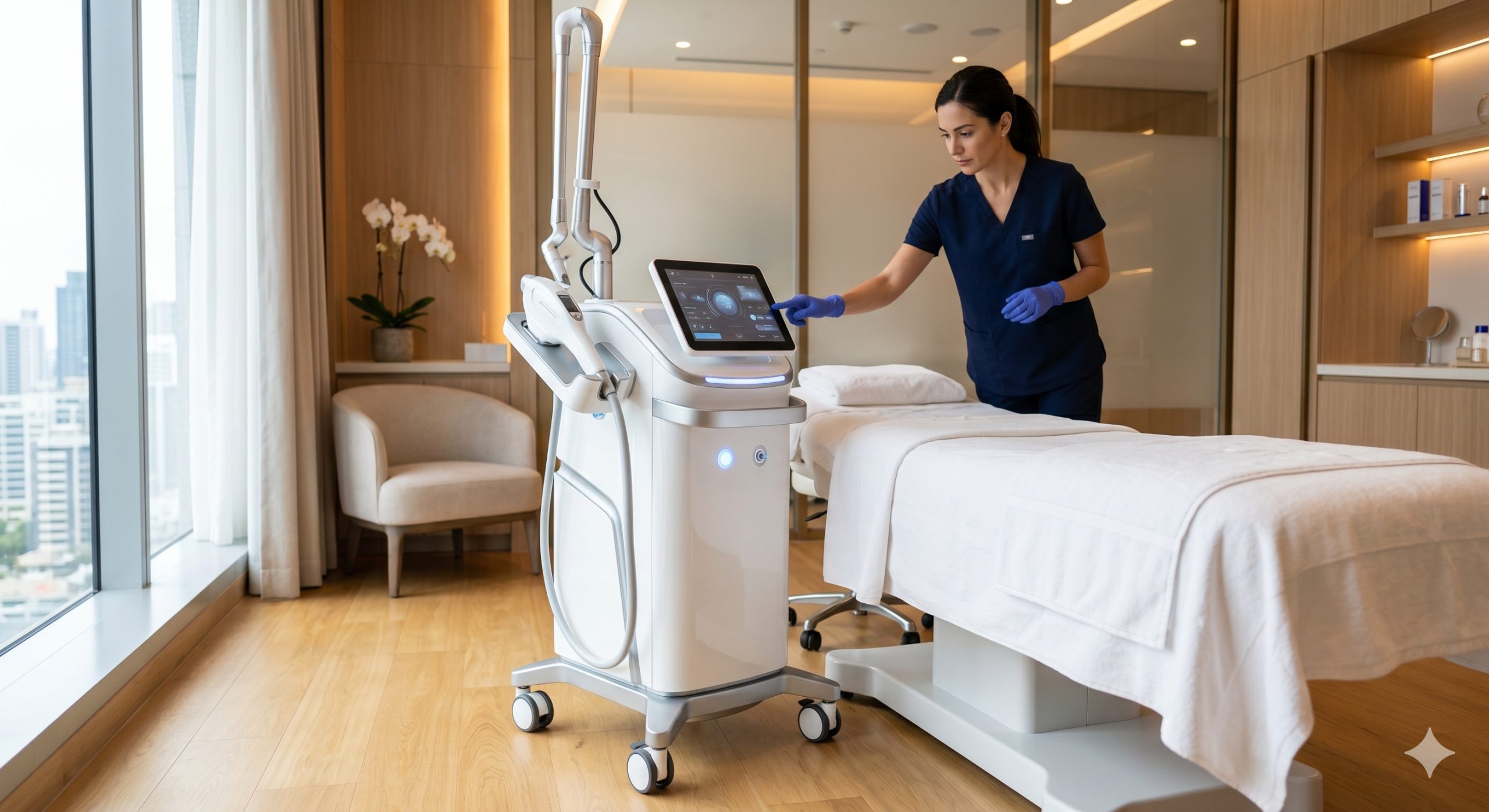

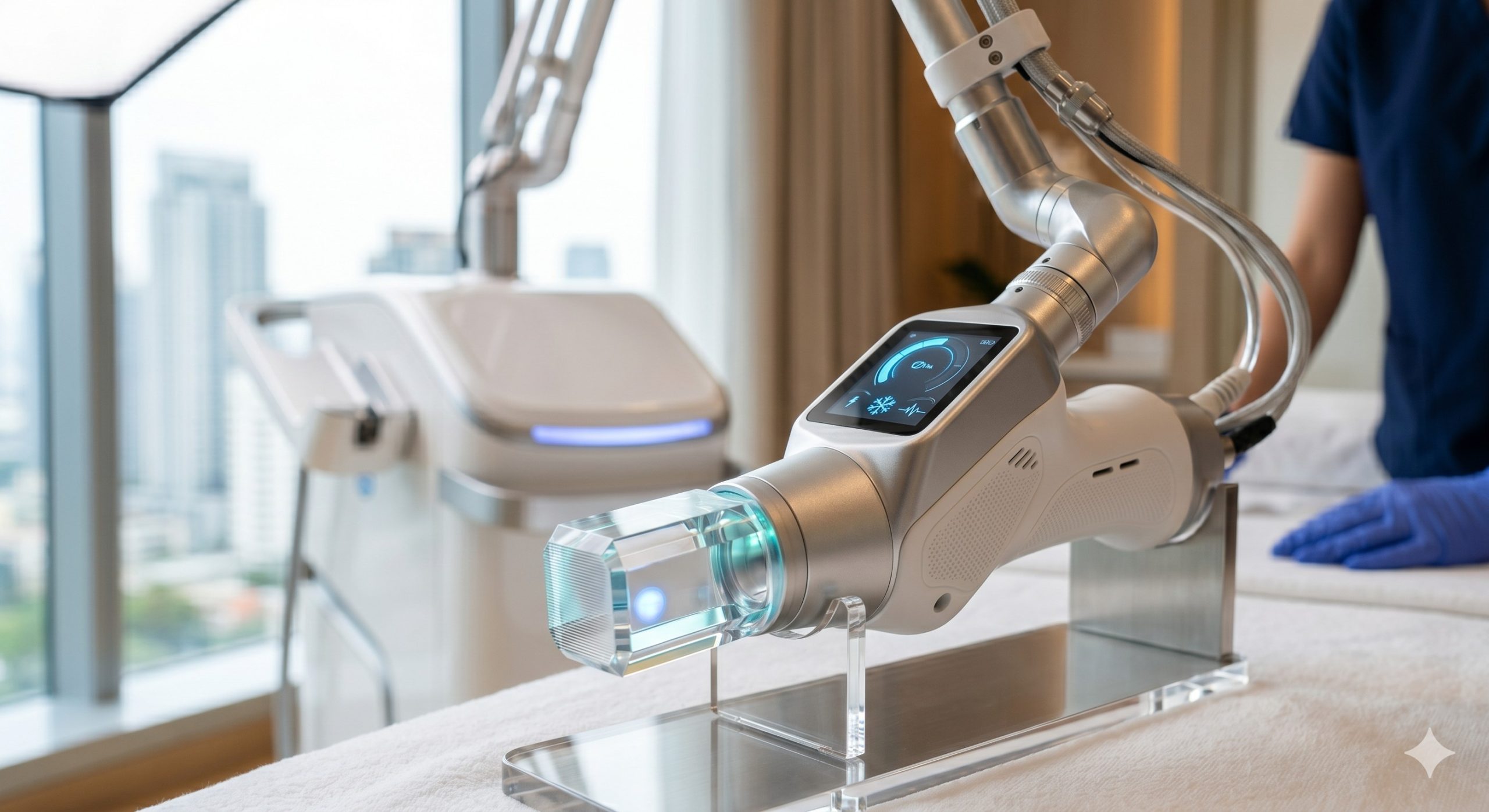

The internal hardware topology comprises a solid-state power amplifier, a precision-tuned resonant tank circuit, and a high-efficiency switching power supply. The system is enclosed in a durable, medical-grade polycarbonate chassis with an integrated 15.6-inch high-definition touchscreen interface. The handpiece features an ergonomic design with a built-in temperature sensor and a safety interlock system that automatically shuts off energy delivery if contact is lost or temperature thresholds are exceeded.

KEY INDICATIONS & CAPABILITIES

The High-Frequency Body Sculpting Module is indicated for:
– Non-invasive reduction of subcutaneous fat and circumference reduction in the abdomen, flanks, and thighs.
– Improvement of muscle tone and definition through high-intensity muscle stimulation.
– Body shaping and contouring in patients with a BMI of less than 30.
– Treatment of stubborn fat deposits resistant to diet and exercise.

COMPLIANCE & STANDARDS

This device is manufactured in compliance with ISO 13485:2016 and meets the essential requirements of the Medical Device Regulation (MDR) 2017/745 (CE 2797). It has received clearance from the U.S. Food and Drug Administration (FDA) for the improvement of abdominal tone, strengthening, and firming. The module adheres to IEC 60601-1 (Medical electrical equipment – Part 1: General requirements for basic safety and essential performance) and IEC 60601-2-10 (Particular requirements for the basic safety and essential performance of nerve and muscle stimulators).

TECHNICAL SPECIFICATIONS

Parameter	Specification
Energy Source	High-Frequency Electromagnetic Field (HF-EMF)
Maximum Output Power	300 W
Operating Frequency	1 MHz – 3 MHz (Auto-Tuning)
Pulse Width	20 µs – 500 µs (Adjustable)
Pulse Repetition Rate	1 Hz – 100 Hz
Cooling System	TEC + Sapphire + Water + Wind (Multi-Stage)
Cooling Temperature Range	5°C to 15°C
Treatment Applicator Size	60 mm x 90 mm
Penetration Depth	Up to 7 cm
Power Supply	100-240 VAC, 50/60 Hz, 10 A
Dimensions (W x D x H)	450 mm x 550 mm x 1100 mm
Weight	Approx. 45 kg
Display	15.6-inch HD Capacitive Touchscreen
Safety Certifications	CE (MDR), FDA, IEC 60601-1, IEC 60601-2-10

CLINICAL PROTOCOLS

Standard treatment protocols recommend a regimen of 4 sessions, spaced 2 to 3 days apart, for optimal results. Each session targets a specific muscle group with a 30-minute application. The system’s intelligent UI allows the clinician to select from 15 pre-programmed treatment modes tailored to different body areas and patient sensitivity levels. The integrated cooling system requires a brief 5-minute pre-cooling phase before the application of energy. Post-treatment, patients can immediately resume normal activities with no required downtime. The device also includes a patient management software suite for tracking treatment progress and outcomes.
