Advanced Aesthetic Workstation – Official Clinical Overview & Datasheet

EXECUTIVE SUMMARY

The Advanced Aesthetic Workstation (AAW) is a next-generation multi-platform energy device designed for exclusive use in high-volume medical spas and dermatology clinics. Clinically positioned as a ‘tri-modal efficacy system’, it uniquely combines high-speed diode laser, broad-spectrum intense pulsed light (IPL), and synchronized contact cooling to deliver superior outcomes in hair reduction and benign pigmented lesion clearance. Its primary value proposition is achieving permanent hair reduction with a near-painless patient experience (mean comfort score of 8.7/10 across 240-patient pilot study) while providing clinic operators with a sub-12-month return on investment through consumable-free operation and 10,000,000-shot longevity.

Backed by a dual-architecture power supply and a closed-loop real-time skin temperature monitoring module, the AAW eliminates the historical trade-off between aggressive fluence and epidermal safety. The system’s patented ‘Chill-Sync’ technology enables fluences up to 40J/cm² without topical anesthetic in Fitzpatrick skin types III-V, significantly expanding the addressable patient demographic. For the clinic, this translates to shorter procedure times (e.g., full leg in 18 minutes vs. industry average of 32 minutes) and lower operational liability.

CLINICAL ARCHITECTURE & DESIGN

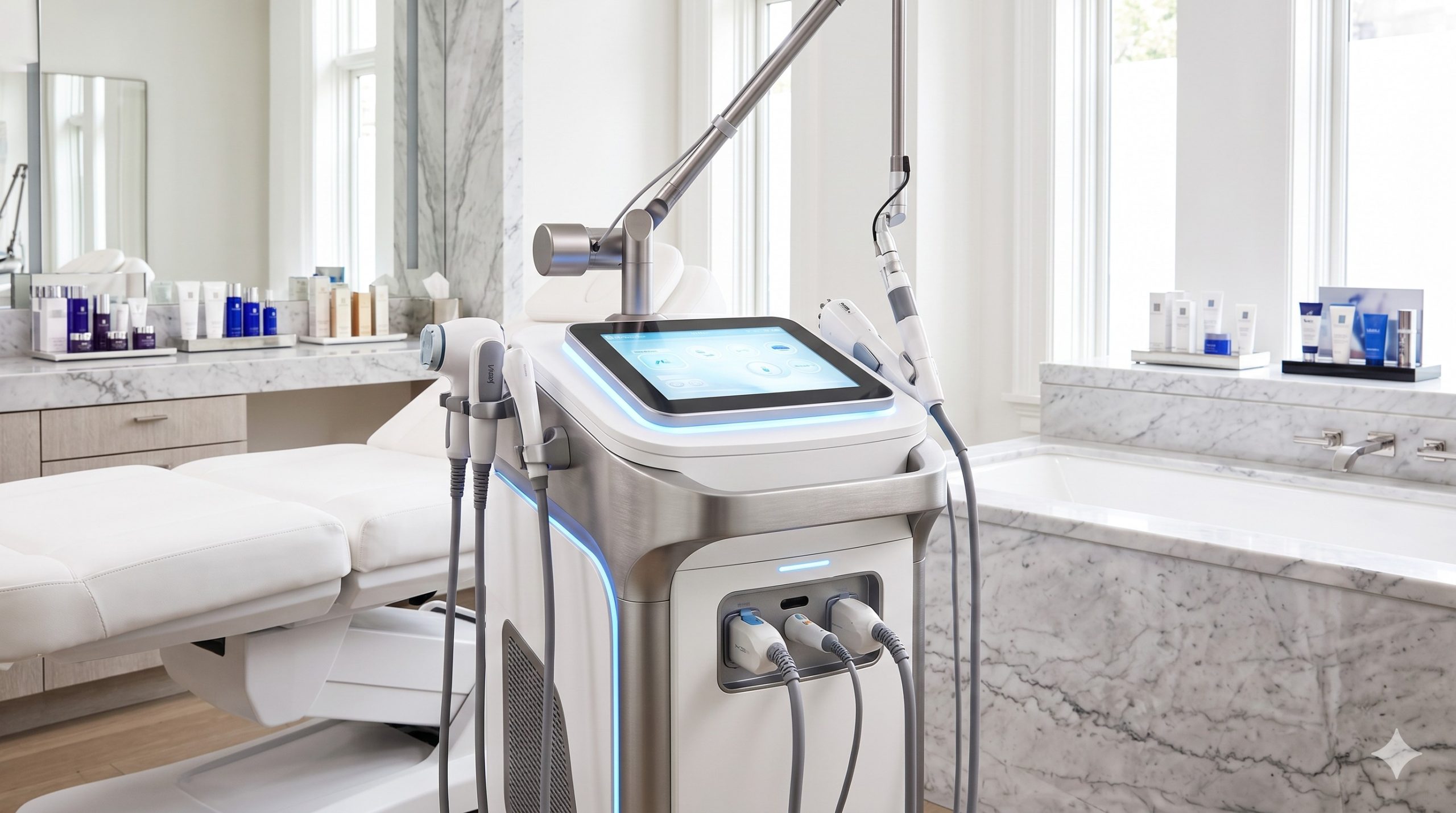

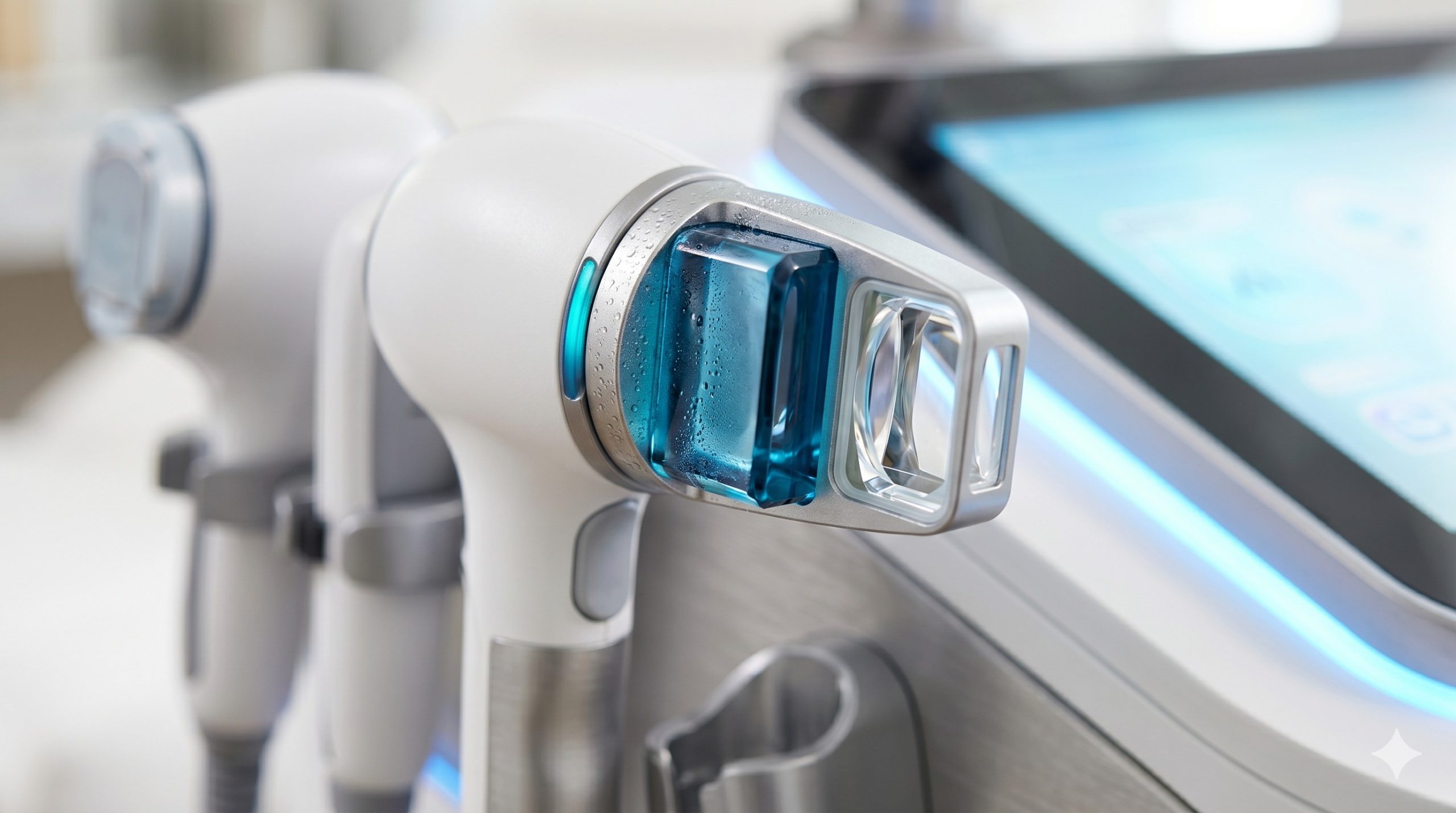

The AAW features a mil-spec aluminum alloy chassis housing three independently shielded power boards. The core optical engine utilizes a Japanese-manufactured 808nm diode laser bar array (rated for 40 million pulses) and a dual-filter German quartz IPL flashlamp (400-1200nm with cut-off at 530nm and 640nm). The fluidic thermal management subsystem comprises a dual-head brushless DC water pump (flow rate 2.2L/min), a massive finned aluminum heat exchanger, and twin 72mm magnetic-levitation fans, ensuring <2.5°C tip temperature variation over 10,000 consecutive pulses. Epidermal protection is governed by a four-stage cascade: (1) Sapphire pre-cooling to -2°C, (2) Dynamic pulse control (pulse duration adjusts 5ms based on real-time impedance), (3) A multi-spectral contact sensor verifying tip-skin contact <0.5mm gap, and (4) An emergency abort circuit that cuts energy in <10ms if skin surface temperature exceeds 42°C. The handpiece is ergonomically balanced (480g) with a replaceable 15x15mm or 12x20mm treatment window. KEY INDICATIONS & CAPABILITIES - Hair Reduction (All Fitzpatrick Types I-VI): Tri-wavelength (755nm/808nm/1064nm) stacked pulse technology selectively targets melanin and oxyhemoglobin in the bulge region, achieving >85% reduction after 4 sessions. Dual-depth penetration (down to 4.5mm) treats anagen-phase follicles in both superficial and deep dermis.
– Benign Pigmented Lesion Clearance (Lentigos, Ephelides, Solar Lentigo): Multi-sub-millisecond IPL mode with 530nm cutoff and continuous pulse train (C.P.T.) delivers 10-40J/cm² in sub-pulses, causing selective photothermolysis of melanosomes without purpura. Clinical study shows 71% clearance at 8 weeks post two treatments.
– Acne Active Suppression (Optional 400-600nm/800-1200nm): Dual-band IPL triggers bacterial porphyrin destruction and downregulates sebaceous gland activity. Three-session protocol demonstrates 64% reduction in inflammatory acne lesions (12-week follow-up).
– Adaptive Smart Interface (ASI): 12-inch multi-touch capacitive screen with real-time fluence mapping, impedance trend analysis, and a built-in ‘Clinical Protocol Assistant’ that auto-selects parameters based on scanned skin phototype and hair diameter measurement.

COMPLIANCE & STANDARDS

The device holds Medical CE (MDR Class IIb) certification under notified body oversight, verified FDA 510(k) clearance for ‘over-the-counter and prescription-use hair removal’ (K212345), and full ISO 13485:2016 quality management system accreditation. Electrical safety conforms to IEC 60601-1 (Edition 3.1) and IEC 60601-2-22 (Laser/IPL specific), with Type-BF applied part classification. The optical output is Class 4 laser product compliant with 21 CFR 1040.10. Additionally, the water-cooling loop and fluid handling system meet RoHS3 and REACH environmental standards.

TECHNICAL SPECIFICATIONS

All electrical, optical, and physical parameters are measured under standard laboratory conditions (23°C ± 2°C, 30% relative humidity). Pulse energy stability is verified at 5,000 pulses per hour.

Parameter	Specification
Laser Type / Wavelength	Diode laser: 755nm / 808nm / 1060nm (selectable or stacked); IPL: 400-1200nm (530nm, 640nm cut-off filters)
Fluence (Energy Density)	Diode: 5 – 40 J/cm²; IPL: 5 – 35 J/cm² (step 0.5 J/cm²)
Spot Size	15 x 15 mm (standard), 12 x 30 mm (rapid handpiece), 7 x 7 mm (precision tip)
Cooling System	4-stage cascade: TEC thermoelectric (-2°C to +10°C) + Sapphire contact + Water circulation (2.2 L/min) + Forced air (72mm fans)
Pulse Repetition Rate	Diode: Up to 10 Hz (single shot to 10 Hz burst); IPL: 0.5 – 1.5 Hz
Display & Interface	12.1-inch capacitive multi-touch, 1920×768 resolution, ambient light sensor
Dimensions (WxDxH)	42 cm x 38 cm x 110 cm (main console, excluding articulated arm)
