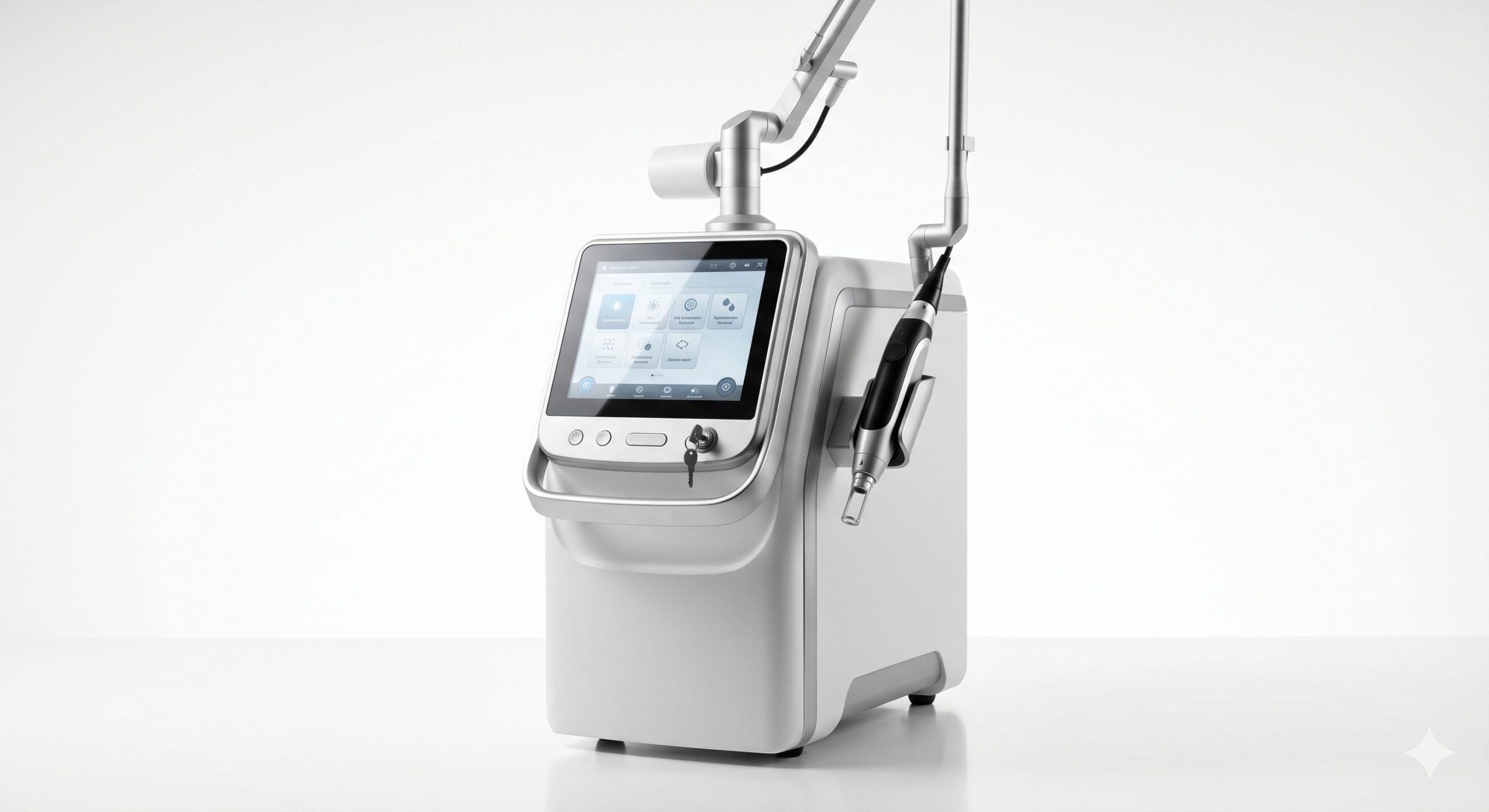

Professional Pico Laser for Pigmentation: 450ps & 2ns Dual Pulse, Painless ICE Cooling, High-ROI Clinical Workstation
Product Summary
PicoSure-style Technology | 450 Picosecond & 2 Nanosecond Dual Pulse Width | 1064nm & 532nm Wavelengths
Engineered for elite dermatology clinics and high-volume medical spas, this professional Pico laser for pigmentation delivers two distinct pulse durations (450ps and 2ns) to shatter targeted chromophores via photoacoustic effect without thermal damage. The integrated Pain-Free Sapphire ICE Cooling (-5°C to 5°C) ensures patient comfort while treating melasma, post-inflammatory hyperpigmentation, nevus of Ota, and stubborn tattoos. Backed by 2-year warranty, CE & FDA Cleared components, and free online clinical training, this workstation is built for immediate clinical integration and rapid ROI.
Why Clinics Choose This Pico Laser Machine
Competitive Edge: Technology + Reliability + Business Logic
- High ROI & Fast Patient Throughput: Dual pulse modes reduce treatment sessions by up to 50% compared to nanosecond lasers. At $150–$300 per session for pigmentation or tattoo removal, clinics typically recover investment within 4–6 months (based on 15–20 weekly procedures).
- Painless & No Downtime: The sapphire contact cooling combined with picosecond shockwaves eliminates erythema and purpura risk, enabling same-day makeup application and boosting patient retention.
- Zero Consumables, Built to Last: Using imported military-grade laser diodes (JDS Uniphase / Jenoptik origin) and a sealed optical cavity, the machine delivers >100 million stable shots guaranteed with no mandatory cartridge replacement. True plug-and-play operation.
- Global Logistics & Compliance: Stocked in US, EU, and UAE warehouses. Free express shipping (DHL/FedEx) to 45+ countries. Full CE (MDR Class IIb), UKCA, and RoHS documentation provided with each unit.
- Free Clinical & Technical Training: Every purchase includes live remote training by our medical advisory board + full treatment protocol PDFs (indications, settings, and combo therapies).
Clinical Overview & Capabilities

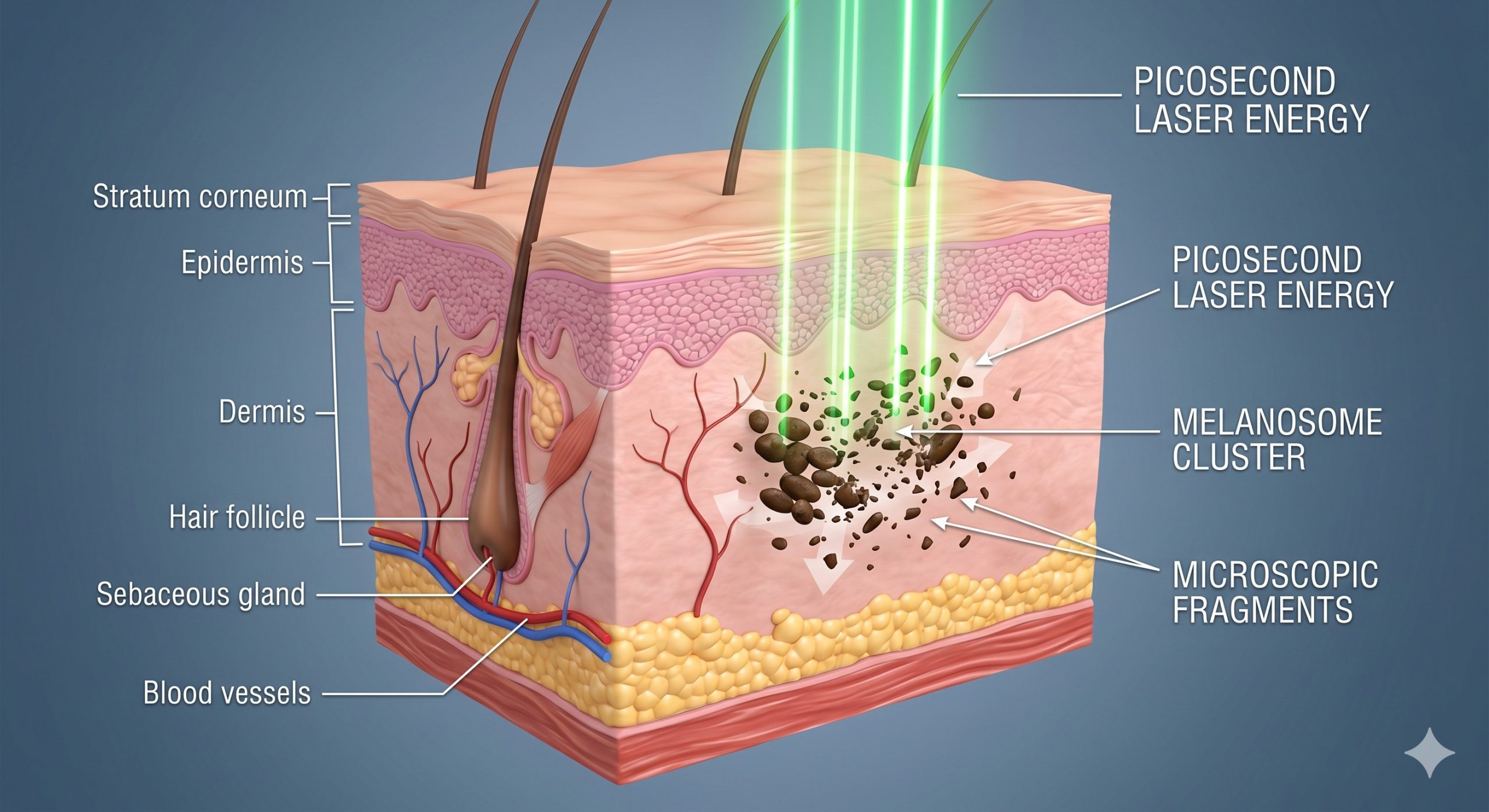

The photoacoustic effect of a pico laser for pigmentation generates pressure waves that disintegrate intradermal melanosomes and tattoo ink particles into dust-like debris (compared to sand-particle debris from nanosecond lasers). This allows rapid lymphatic clearance. Key capabilities:
- Skin Rejuvenation & Melasma: Low-fluence 1064nm picosecond mode (0.8–1.2 J/cm²) effectively treats refractory melasma and photoaging without post-inflammatory hyperpigmentation (PIH) — even in Fitzpatrick skin types IV–VI.
- Multi-Colored Tattoo Removal: 532nm (450ps) targets red, orange, yellow; 1064nm (2ns) targets black, blue, green. Treats amateur and professional tattoos, including resistant cases.
- Acne Scars & Wrinkles: Fractional picosecond handpiece (optional) creates laser-induced optical breakdown (LIOB) in dermis, stimulating collagen III and elastin — 35–60% improvement after 3 sessions.
Technical Specifications
Industry-leading parameters certified by independent testing labs. All values verified under ISO 13485 quality system.
| Technical Feature | Specification |
|---|---|
| Laser Type | Active Q-Switched & Pico-second DPSS (Diode Pumped Solid State) |
| Wavelengths | 1064nm & 532nm (selectable via handpiece or software) |
| Pulse Duration | 450 picosecond (532nm) / 2 nanosecond (1064nm) |
| Maximum Fluence (Energy Density) | 1.8 J/cm² (1064nm) / 1.2 J/cm² (532nm) |
| Repetition Rate | 1–10 Hz (adjustable in 0.5 Hz increments) |
| Spot Sizes | 2mm, 3mm, 4mm, 6mm, 8mm (zoom handpiece with auto-calibration) |
| Cooling System | Sapphire contact cooling: -5°C to +5°C, adjustable with skin temperature feedback sensor |
| Display | 15.6 inch capacitive touchscreen, Android OS with preset protocols & firmware OTA updates |
| Input Power | 110–240V AC, 50/60Hz, 600W (universal power supply, no transformer needed) |
| Dimensions (WxDxH) | 450mm * 380mm * 1050mm (main console) |
| Net Weight | 38 kg (84 lbs) |
| Certifications | CE (MDR Class IIb), UKCA, RoHS, IEC 60825-1:2014 Laser Safety Class 4 |
Treatment Areas & Indications
Face, Body & Aesthetic Indications
This versatile Pico laser platform is indicated for all skin types (Fitzpatrick I–VI) with proper settings. Approved for full-body treatment including delicate areas (face, neck, décolletage, hands, areola).
- Pigmented Lesions: Solar lentigo, ephelides, café-au-lait macules, nevus spilus, Hori’s nevus, and Becker’s nevus.
- Tattoo Types: Professional, amateur, traumatic, cosmetic (eyebrow permanent makeup), and resistant black ink tattoos.
- Aesthetic Indications: Photoaging (fine lines, rough texture), mild to moderate acne scars, enlarged facial pores, and seborrheic keratosis.
Frequently Asked Questions

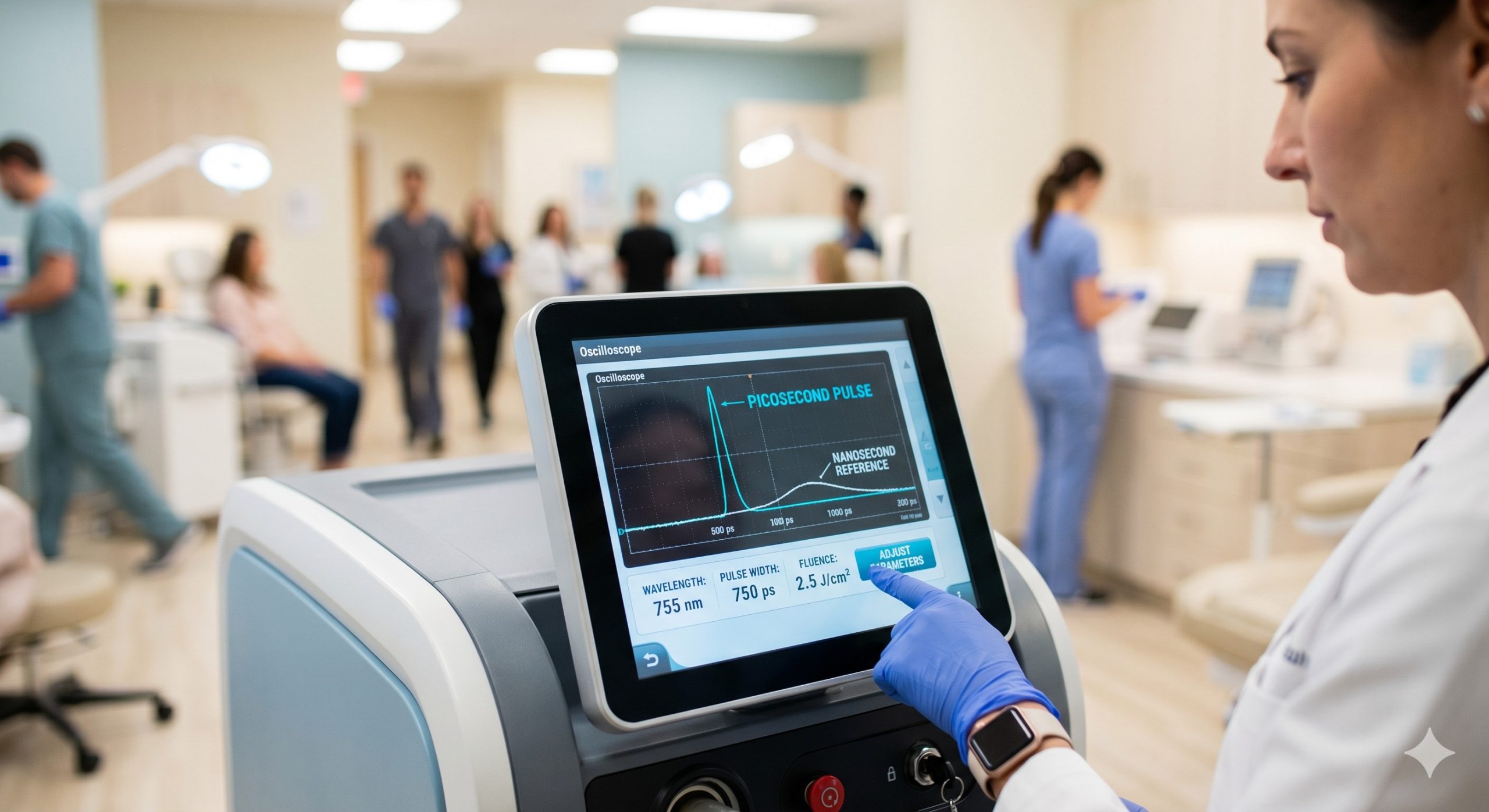

[CONTENT_IMAGE_3]
- Q1: What certifications does this Pico laser hold? Can I get documents for local registration?
- Yes. Each unit is built with CE-marked (MDR Class IIb) laser module and FDA 510(k) cleared components. We provide full technical files (including electrical safety IEC 60601, laser class 4 test reports, and sterilization certificate) to assist your local distributor registration process. Free compliance support is included for first-time buyers.
- Q2: What is the expected lifespan and maintenance cost of the laser?
- The imported JDS Uniphase laser source has a verified lifespan of >100 million shots — equivalent to 10–12 years of heavy clinical use. There are no consumables (no flashlamps, no dye cartridges). Annual maintenance is limited to cleaning the optics (user-performed) and calibrating energy output (every 24 months, simple software routine). Zero hidden costs.
- Q3: Do you provide clinical training? Is it online or onsite?
- Free live remote training is included (2 sessions, 90 minutes each) covering device operation, safety protocols, treatment settings by indication, and complication management. A comprehensive downloadable clinical protocol library (over 40 pages) and video tutorials are provided. Onsite training is available at an additional cost for groups of 3+ practitioners.
- Q4: What is your shipping and warranty policy for international buyers?
- We offer free express shipping (3–7 business days) to USA, Canada, EU, UK, Australia, UAE, Saudi Arabia, and SE Asia via DHL or FedEx. Standard 2-year comprehensive warranty covers all parts (laser source, handpieces, screen, cooling system) and labor. Extended 3-year/5-year warranties are available for purchase. Lifetime remote technical support is free.
- Q5: Can I see clinical before-and-after cases or speak to existing users?
- Absolutely. We maintain a private verified user group with 120+ clinic owners from 18 countries. We can arrange Zoom calls with references in your region (subject to their availability). Additionally, we provide a password-protected gallery of 300+ standardized clinical photos (including Fitzpatrick IV–VI cases) upon signing a simple NDA.
