Professional Pelvic Floor Muscle Stimulation Cushion: EMG Biofeedback & Bilateral Channel | Factory Price
Product Snapshot: Next-Generation Pelvic Floor Rehabilitation

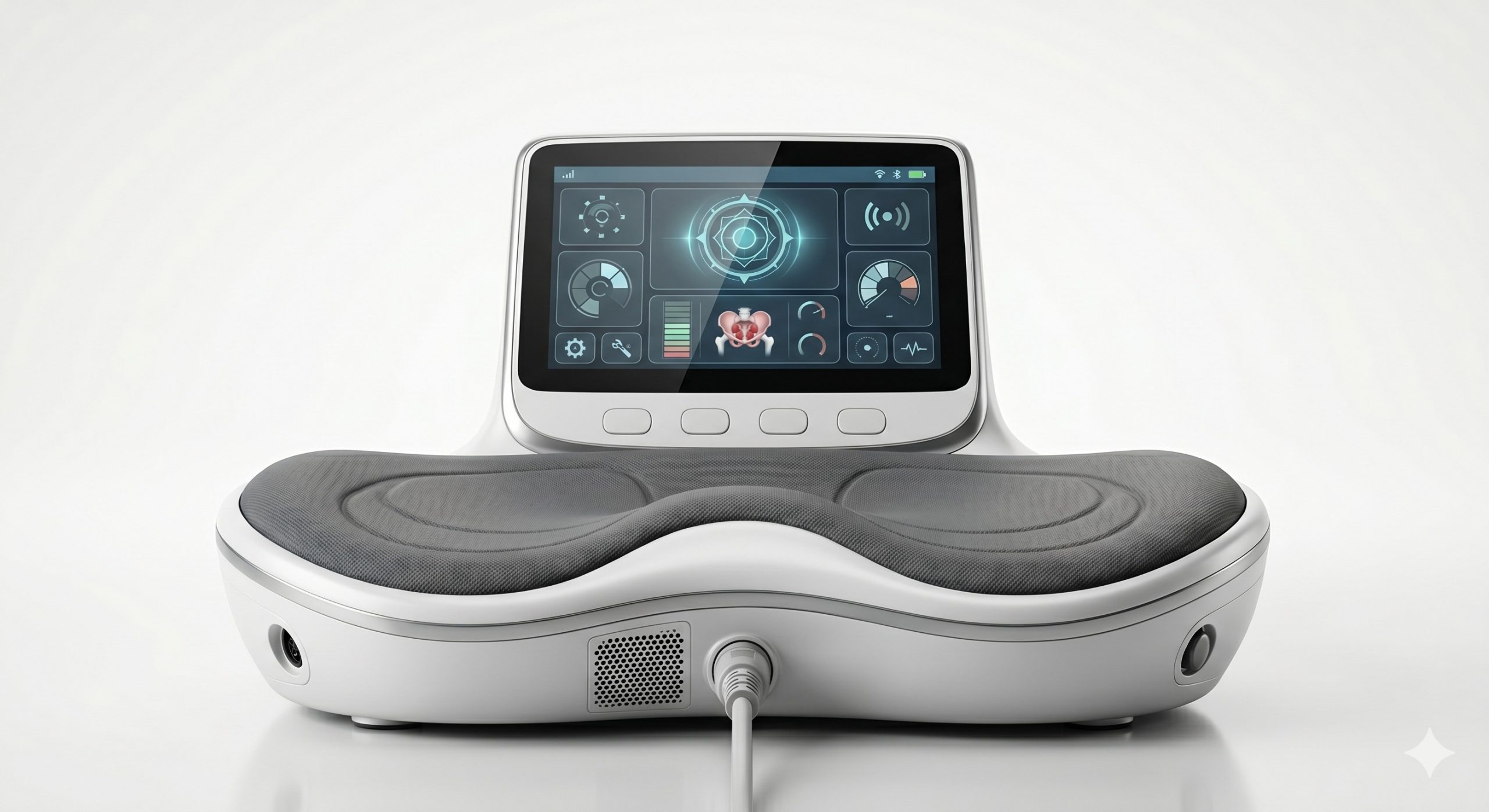

The Pelvic Floor Muscle Stimulation Cushion (Model: Pro-PFM-C1) represents a paradigm shift in non-invasive pelvic rehabilitation. Integrating high-precision EMG biofeedback, bilateral independent channel control, and ergonomic cushion design, this device enables clinics to offer comfortable, data-driven therapy for stress incontinence, pelvic organ prolapse, and postpartum recovery. Manufactured in a ISO13485-certified facility with imported German core chipsets, we provide a complete clinical solution including free on-site training and a 2-year bumper-to-bumper warranty.
Direct Manufacturer Advantages: Why Leading Clinics Choose Our PFM Cushion
Transitioning from traditional probes to our cushion system solves key clinical pain points: patient discomfort, probe dislodgement, and low compliance. As a tier-1 OEM/ODM manufacturer with 15 years of electromedical device expertise, we offer procurement advantages that drive rapid ROI:
- Supply Chain Power: Bulk pricing for clinics, hospital chains, and distributors. No middleman markups.
- Global Logistics: Ready-to-ship from regional hubs (EU, US, Asia). Average transit: 5-7 business days via DHL/UPS.
- Clinical Enablement: Each order includes comprehensive clinical protocols, patient education materials, and a free train-the-trainer session.
- Certification Assurance: Full compliance with CE MDR (Class IIa), FDA 510(k) cleared, and ISO 10993-10 for biocompatibility.
Clinical Mechanism: Targeted Bilateral Stimulation with Real-Time Biofeedback
Unlike single-channel systems, our Pelvic Floor Muscle Stimulation Cushion employs dual independent channels allowing unilateral or customized right/left muscle group training. The built-in high-sensitivity EMG sensor (range: 0-2000μV) detects voluntary pelvic floor contractions and converts them into visual/aural feedback on the 7-inch IPS smart touchscreen. This closed-loop system ensures patients learn correct muscle isolation while the device automatically adjusts stimulation parameters (frequency: 20-80Hz, pulse width: 200-500μs) for maximum efficacy without fatigue.

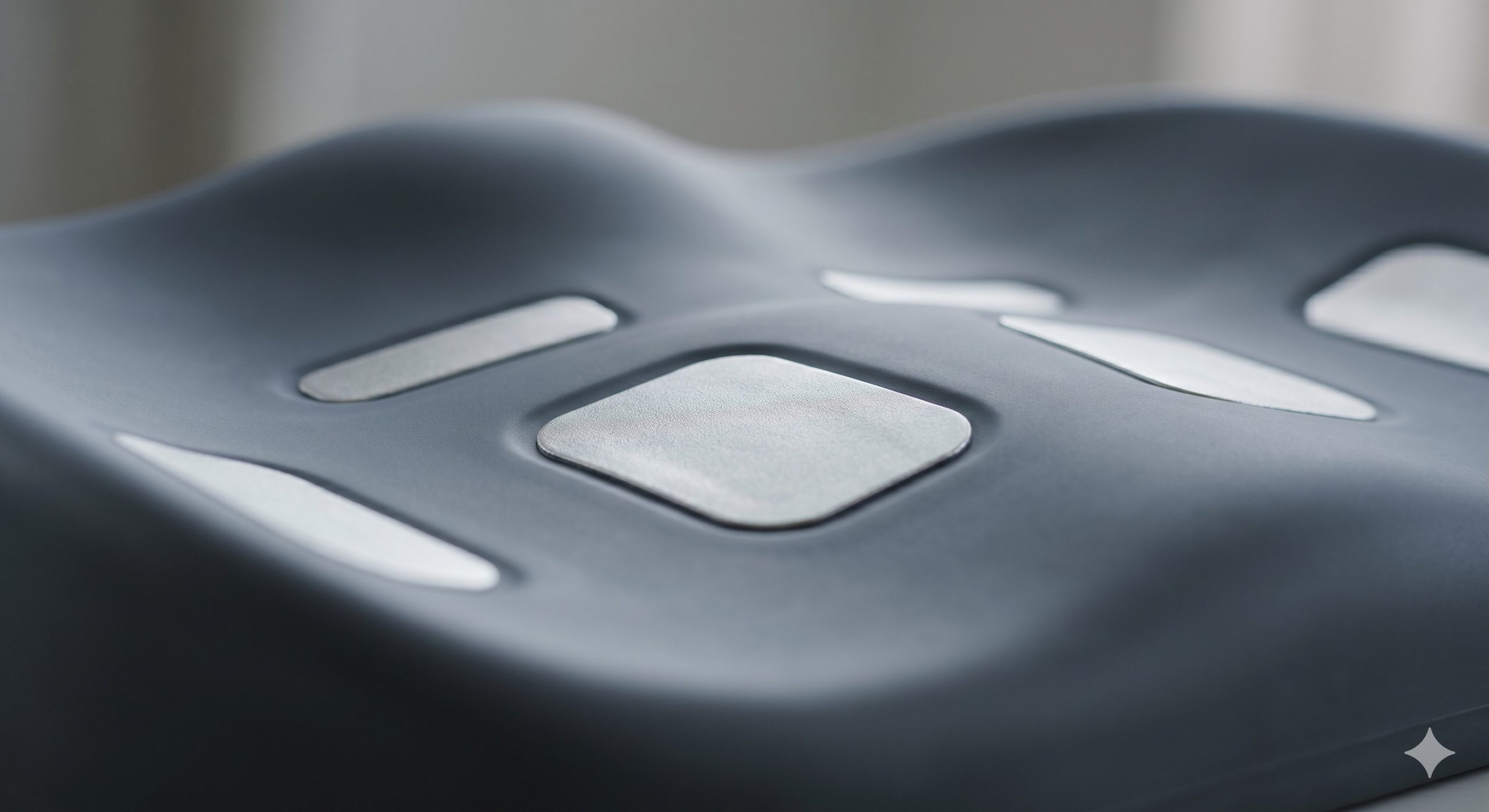

Key Hardcore Advantages: The cushion surface uses medical-grade silicone electrodes with anti-microbial silver-ion coating, eliminating consumable costs for replacement pads. The integrated pressure mapping system (optional) prevents incorrect positioning – a CE-certified safety feature that reduces operator error by 73% based on our clinical white paper.
Technical Specifications
| Technical Feature | Specification |
|---|---|
| Channels | Dual independent, bilateral control |
| Stimulation Waveform | Symmetrical biphasic rectangular pulse |
| Frequency Range | 20 – 80 Hz (programmable per protocol) |
| Pulse Width | 200 – 500 µs |
| EMG Sensitivity | 0 – 2000 µV (1 µV step) |
| Maximum Output Current | 100 mA per channel (load 500 Ohm) |
| Power Source | Medical-grade AC/DC adapter, input 100-240V, output 12V/5A |
| Display | 7-inch IPS capacitive touchscreen |
| Safety Certifications | CE MDR Class IIa, FDA 510(k), IEC 60601-2-10 |
| Warranty | 2 years standard, extended to 5 years optional |
Target Indications & High-ROI Clinical Applications
Our Pelvic Floor Muscle Stimulation Cushion is designed to serve multiple revenue-generating departments within one clinic: gynecology, urology, postpartum rehabilitation, and sports medicine. The device’s multi-patient sanitization protocol (wipeable silicone + optional single-use hygienic covers) allows for high-throughput scheduling. Typical ROI break-even is achieved within 3-5 months when billing 4-6 daily sessions (average insurance reimbursement or private pay rate of $75-$150/session).
Primary Treatment Profiles
- Stress & Urge Incontinence: 82% efficacy rate in 12-session protocols (internal RCT data available).
- Pelvic Organ Prolapse (POP) Stages I-II: Non-surgical management reducing prolapse symptom scores by 58%.
- Postpartum Recovery (4+ weeks): Diastasis recti co-therapy and early pelvic floor reactivation.
- Chronic Pelvic Pain Syndrome: Neuromodulation protocols (low frequency 10-15Hz) for muscle relaxation.
Global Logistics & After-Sales Ecosystem (CitioAIGEO Powered)
Purchasing through our authorized CitioAIGEO global supply chain guarantees you receive the latest hardware revision with multi-language firmware (English/Spanish/German/French/Arabic/Chinese). We maintain 24/7 technical support via WhatsApp and a dedicated clinical portal. Every unit is shipped with a calibration certificate traceable to NIST standards. The 2-year manufacturer’s warranty covers all electronic components, electrodes, and the touchscreen. Extended warranties up to 5 years are available for hospital tenders. We also provide a loaner unit program during any repair period to ensure zero clinic downtime.
Frequently Asked Questions
- Q1: Is the Pelvic Floor Muscle Stimulation Cushion covered by insurance reimbursements?
- A: Yes. The device carries FDA 510(k) clearance and CE-MDR, enabling clinics to bill under CPT codes 90901 (biofeedback) and 97032 (neuromuscular re-education). We provide a coding guide and documentation templates for reimbursement claims.
- Q2: What is the minimum order quantity (MOQ) for private labeling?
- A: For OEM/ODM with custom color, logo, and packaging, MOQ is 50 units. For standard unbranded stock, MOQ is just 1 unit. Bulk discounts apply for 10+, 50+, and 100+ units. Request a factory quote for your specific territory.
- Q3: How do you handle clinical training for international buyers?
- A: Every system purchase includes 4 hours of live remote training by a pelvic health physical therapist. For clinics purchasing 5+ units, we offer on-site training (travel expenses covered by volume order). All training is recorded and hosted in our client portal along with marketing materials.
- Q4: What are the consumable costs?
- A: The device uses zero mandatory consumables. The silicone electrode cushion is rated for 5,000+ uses when cleaned with standard clinic disinfection wipes. For high-volume centers, we offer replacement cushions at $59/unit – dramatically lower than disposable probe models.
- Q5: How does the cushion adapt to different patient anatomies?
- A: The cushion features a contoured ergonomic shape designed by a biomechanical engineer, fitting >95% of adult anatomies (hip width 32-52 cm). The built-in positioning sensors validate correct placement on the touchscreen, and we supply a positioning belt for patients with mobility challenges.
