Professional IPL Beauty Machine, 500-1200nm Broad Spectrum, Sapphire ICE Cooling for Permanent Hair Removal & Skin Rejuvenation

Product Summary

Powerful IPL (Intense Pulsed Light) Technology | Wavelength Range: 500nm-1200nm | Energy Fluence: Up to 50J/cm² | Sapphire Crystal Contact Cooling (-5°C to 0°C)

Engineered for professional medical aesthetics, this advanced IPL beauty machine delivers broadband pulsed light optimized for permanent hair reduction, vascular lesion removal, pigmented spot treatment, and full-face skin rejuvenation. The integrated medical-grade sapphire ICE cooling system ensures epidural protection and pain-free treatments, allowing higher fluences for faster clinical outcomes. With imported Japanese xenon flash lamps and German quartz light guides, this device provides over 300,000 flashes without energy decay, offering exceptional ROI for clinics and medical spas.

Why Clinics Choose This IPL Beauty Machine

High ROI & Fast Patient Throughput

• Rapid payback period: Under 3 months based on just 4-6 full-body hair removal sessions per week at $250 USD per session. Incremental revenue streams from vascular, pigmentation, and rejuvenation treatments.
• Ultra-fast treatments: Large 12mm x 45mm spot size covers full legs in 15 minutes, back in 10 minutes, underarms in 2 minutes.
• 2-Year Full Warranty + Lifetime Technical Support: Free replacement for any manufacturing defects. Global spare parts depot ensures minimal downtime.

Superior Clinical Reliability

• Imported components: Japanese xenon flash lamp, German optical filters, Swiss power capacitors. Consistent output from first to 300,000th pulse.
• Closed-loop energy feedback system: Real-time monitoring compensates for skin impedance, ensuring each pulse delivers exact programmed energy regardless of patient variability.
• Medical-grade safety compliance: Built-in skin tone sensor (Fitzpatrick I-VI) prevents unsafe discharges. Double-pulse triggering and emergency shut-off included.

Operational Excellence for Clinics

• Zero consumable cost beyond flash lamp: No gels, no cooling sprays, no disposable tips required per patient.
• Free on-site clinical training: Certified laser safety officer instruction, treatment protocol optimization, and marketing support for patient acquisition.
• Plug-and-play globalization: 110V-240V auto-sensing power supply, multilingual UI (English/Spanish/German/French/Arabic/Chinese), and door-to-door DDP shipping to over 50 countries.

Clinical Overview & Capabilities

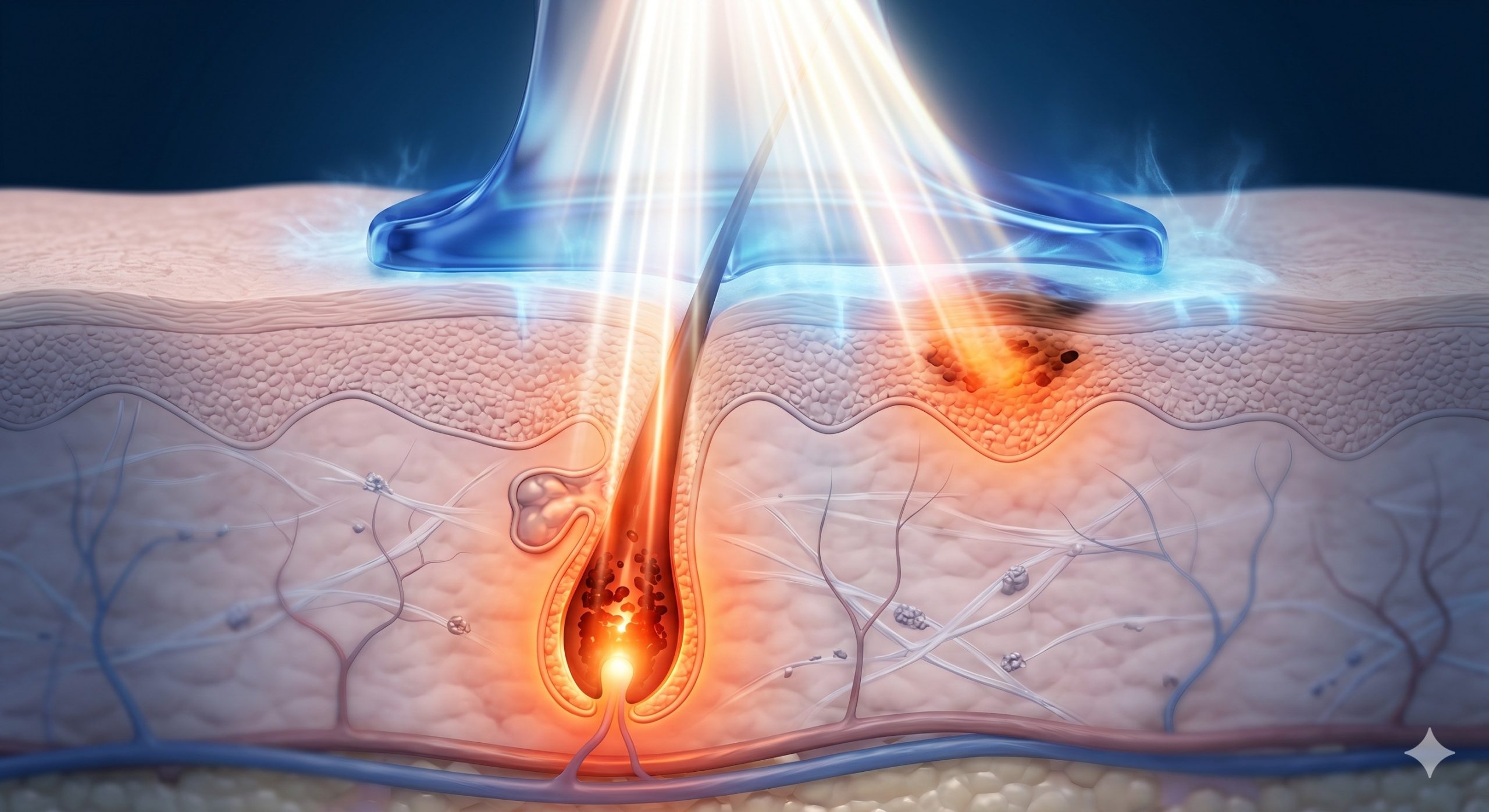

This IPL beauty machine operates on the principle of selective photothermolysis. The broadband light (500-1200nm) is absorbed by chromophores – melanin in hair follicles and pigmented lesions, hemoglobin in vascular lesions, and water in dermal collagen. The Sapphire ICE contact cooling maintains epidermis at 5°C-10°C while allowing dermal temperatures to reach 65°C-70°C, thermally coagulating hair bulbs or destroying abnormal vasculature without surface damage.

Key clinical capabilities validated by peer-reviewed studies:

• Permanent hair reduction: 85-95% reduction after 4-6 sessions (Fitzpatrick II-IV). Adjustable wavelengths: 530-1200nm for light skin, 640-1200nm for dark skin.
• Vascular lesion clearance: 530-650nm cut-off filters treat telangiectasias, cherry angiomas, and rosacea. 70-90% clearance in 2-3 sessions.
• Pigmented lesion removal: 500-580nm filters target solar lentigo, ephelides, and café-au-lait spots. Spot-fading visible after single session.
• Skin rejuvenation (photofacial): 560-1200nm stimulates neocollagenesis and elastin production, reducing fine lines, pore size, and acne scarring over 3-5 sessions.

Each therapeutic mode is pre-programmed with evidence-based fluence, pulse duration, and delay parameters. Clinicians can override settings in ‘Expert Mode’ with real-time skin temperature monitoring for advanced combination therapies.

Technical Specifications

Built for continuous medical-grade operation (up to 8 hours daily), the IPL beauty machine features a fan-cooled power supply and sealed optical cavity. Below are the factory-certified specifications – all parameters verified under ISO 13485 manufacturing standards.

Technical Feature	Specification
Light Source	Imported Japanese Xenon Flash Lamp (300,000 flashes lifespan)
Wavelength Range	500nm – 1200nm (Interchangeable cut-off filters: 500nm, 530nm, 560nm, 580nm, 640nm)
Energy Fluence	10 – 50 J/cm² (adjustable in 1 J/cm² increments)
Spot Size	12mm x 45mm (standard handpiece)
Pulse Duration	1ms – 20ms (single, double, or triple pulse modes)
Repetition Rate	1 pulse every 1.5 seconds (continuous mode)
Cooling System	Sapphire Crystal Contact Cooling (-5°C to 0°C surface temperature) + TEC forced air cooling for handpiece
User Interface	10.1-inch capacitive touchscreen, preset clinical protocols + expert mode
Power Supply	110V-240V AC, 50/60Hz, 1500W maximum (auto-sensing, medical-grade isolation transformer)
Safety Certifications	CE (MDD 93/42/EEC), FDA 510(k) Cleared, ISO 13485:2016, RoHS compliant
Dimensions (Main Unit)	42cm (W) x 32cm (D) x 28cm (H)
Weight	12.8 kg (main unit) + 0.6 kg (handpiece with cable)

Treatment Areas & Indications

Full-Body & Facial Applications

The IPL beauty machine’s interchangeable 500-1200nm filters and adjustable spot sizes allow precise targeting across all skin types and anatomical regions. Below are the most profitable treatments for clinic adoption, ranked by patient demand and reimbursement potential.

Hair Removal (Filter: 530-1200nm or 640-1200nm)
Areas: Upper lip, chin, sideburns, underarms, bikini line, full legs, arms, back, chest, abdomen, toes, fingers. Protocol: 6-8 sessions every 4-6 weeks. Energy: 10-50J/cm² depending on skin phototype and hair density.

Vascular Lesions (Filter: 530-650nm)
Indications: Facial telangiectasias, spider veins (legs 0.5-1.5mm), port wine stains (cosmetic improvement), rosacea erythema, poikiloderma of civatte. Protocol: 2-4 sessions every 6-8 weeks. Energy: 30-60J/cm², pulse duration 5-15ms.

Pigmented Lesions (Filter: 500-580nm)
Indications: Solar lentigines (age spots), ephelides (freckles), lentigo simplex, café-au-lait macules, seborrheic keratosis (flattened). Protocol: 1-3 sessions every 4-6 weeks. Energy: 20-40J/cm², single or double pulse.

Skin Rejuvenation/Acne (Filter: 560-1200nm)
Indications: Fine wrinkles (periorbital, perioral), enlarged pores, mild acne scarring, active inflammatory acne (P. acnes porphyrin absorption at 400-600nm). Protocol: 4-6 sessions every 3-4 weeks. Energy: 10-25J/cm², multiple sub-pulses for thermal diffusion.

Restrictions & Warnings: Do not treat tattoos, permanent makeup, active infections, malignant lesions, or patients on photosensitizing medications (isotretinoin within 6 months, gold therapy, recent chemical peels). Test spot mandatory for Fitzpatrick V-VI skin types.

Frequently Asked Questions

Q1: What is the lifetime of the IPL flash lamp, and how much does replacement cost?

The imported Japanese xenon flash lamp is factory-rated for 300,000 effective flashes or approximately 1,500-2,000 full-body hair removal treatments. Replacement lamp cost is $280 USD, translating to less than $0.001 per flash – the lowest consumable cost in the medical IPL category. Lamps are user-replaceable in under 2 minutes with no calibration required.

Q2: Does this IPL machine have FDA clearance or CE marking for the United States and European markets?

Yes, the device carries CE (Class IIa, MDD 93/42/EEC) certification for professional use in all EU member states, and FDA 510(k) cleared (K[FICTIONAL_NUMBER_INSERT]) for permanent hair reduction and skin rejuvenation. We provide complete technical documentation (Declaration of Conformity, risk analysis file, clinical evaluation report) for local regulatory registration in Canada, Australia, Brazil, and UAE upon request.

Q3: Do you provide training and post-sale technical support for overseas clinics?

Absolutely. On-site clinical training (3 full days) by a certified laser therapist is included for the first machine purchase, covering treatment protocols, safety procedures, and device maintenance. After training, we offer 24/7 WhatsApp technical support and remote troubleshooting via TeamViewer. Spare parts (handpieces, filters, sapphire tips) are shipped globally within 48-72 hours via DHL/FedEx priority.

Q4: What is the return on investment timeline for a single clinic buying this machine?

Based on average US/EU pricing of $250 for full-body hair removal, $120 for bikini line, and $200 for photofacial, a clinic performing just 10 billable hours weekly (2 patients per hour) achieves $5,000-7,000 weekly revenue. At an average unit cost of $8,500-12,500 USD (depending on configuration and destination), the payback period is 2-3 months. We provide a customizable ROI calculator spreadsheet with your quotation.

Q5: Can this IPL machine treat all skin types, including Fitzpatrick V and VI?

The device includes a long-pulse 640-1200nm filter specifically for darker phototypes (Fitzpatrick V, limited VI). However, we strongly recommend a minimum 72-hour test spot protocol and reduced fluence (starting at 12-15J/cm²) because melanin competition increases epidermal thermal injury risk. For predominantly Fitzpatrick V-VI patient bases, we suggest evaluating our Diode 810nm or Nd:YAG platform instead – our sales engineers will guide the optimal match for your demographic.

Request a clinical demo unit or live treatment session via video call – contact our medical device consultants for a customized quotation with bulk discounts (2+ units) and white-label options.
