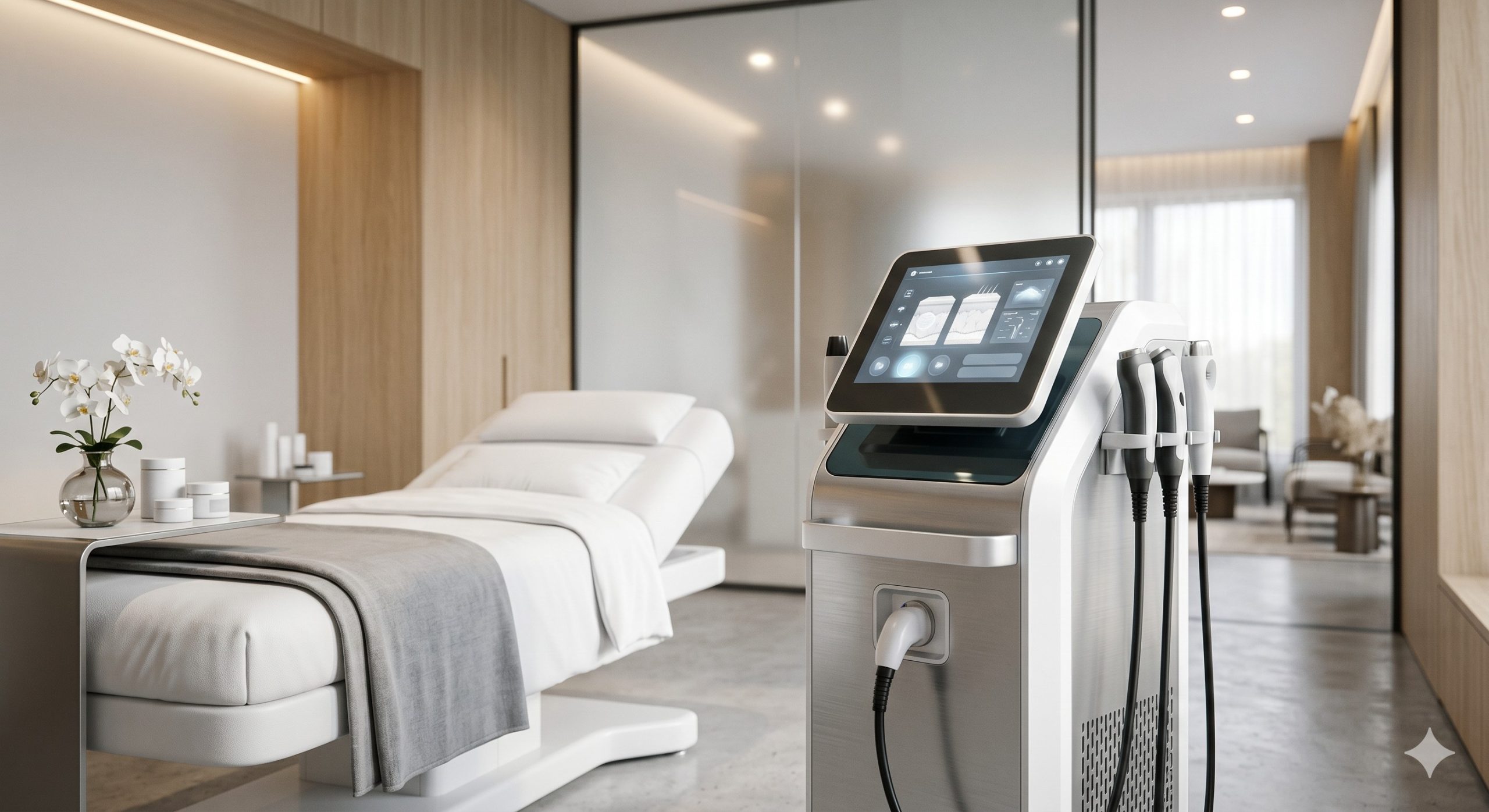

Clinical Architecture & Performance Reference Manual: Commercial RF Wrinkle Removal Console

DEVICE ROLE IN DERMATOLOGY

The Commercial RF Wrinkle Removal Console represents a paradigm shift in non-invasive dermal remodeling, utilizing controlled bipolar and monopolar radiofrequency (RF) energy to achieve volumetric tissue heating. This system is architected for medical spas and dermatology clinics seeking a high-efficiency solution for moderate-to-severe rhytides and skin laxity.

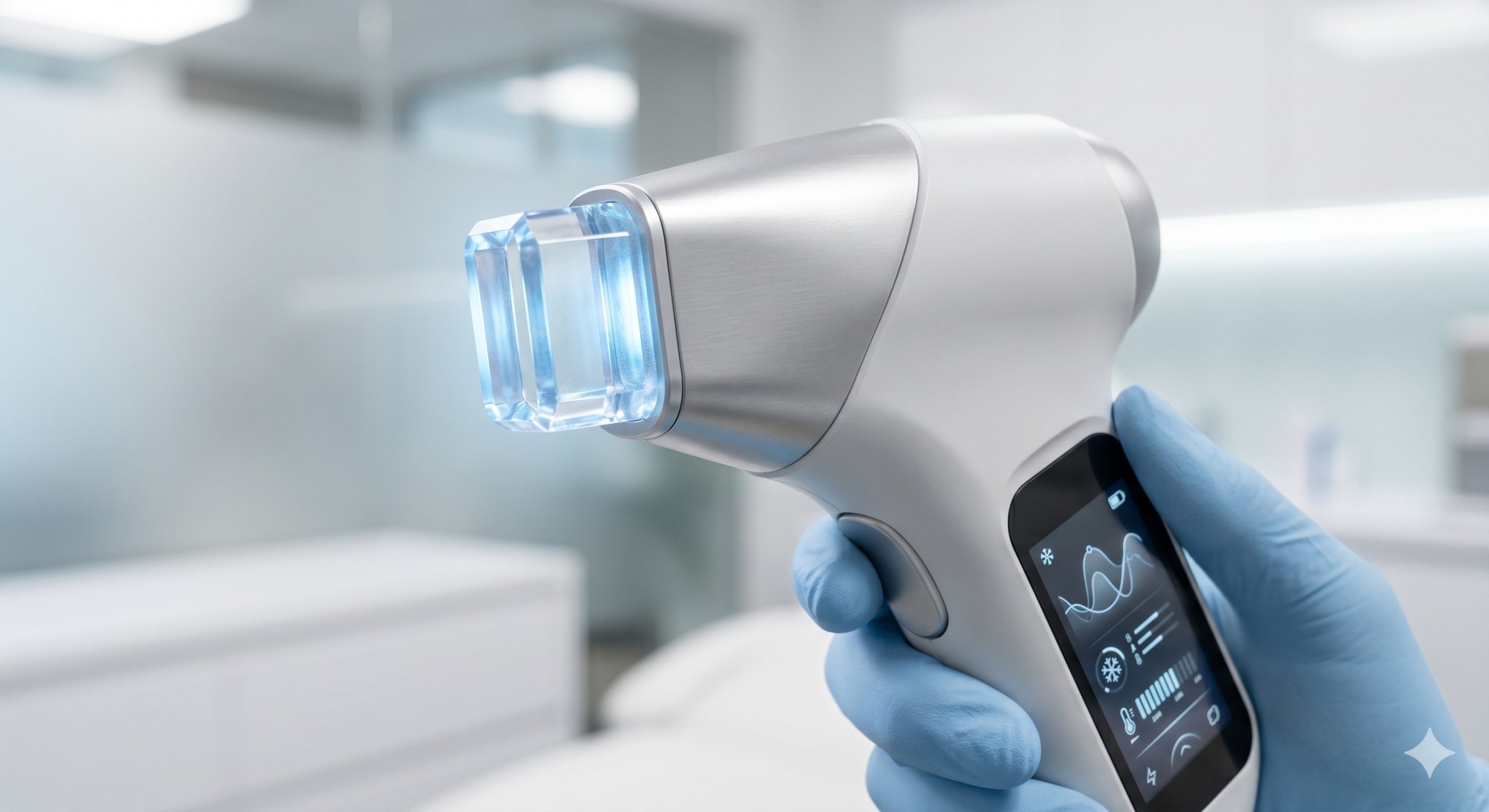

ADVANCED SAPPHIRE ICE COOLING

The console integrates a multi-stage TEC (Thermoelectric Cooling) module combined with a continuous sapphire contact cooling plate. This architecture decouples the epidermal barrier from the deep dermal heating zone, enabling the delivery of therapeutic fluences (up to 200J/cm³) while maintaining an epidermal temperature of +5°C to +10°C, ensuring a painless or near-painless patient experience.

FLUENCE MANAGEMENT

The system employs a closed-loop impedance feedback algorithm. As the dermal collagen reaches the target 52°C-58°C threshold for neocollagenesis, the console automatically modulates power output to prevent overheating or charring. Key delivery modes include:
– Monopolar RF: Deep volumetric heating (10mm-20mm depth) for bulk laxity.
– Bipolar RF: Superficial resurfacing (2mm-5mm depth) for fine lines.
– Fractional RF (optional handpiece): Microneedle-assisted delivery for scar revision.

PERFORMANCE PARAMETERS

– Output Power: 0-400W (Peak, Monopolar Mode)
– Operating Frequency: 1.0MHz / 3.0MHz / 5.0MHz (Selectable)
– Pulse Duration: 100ms – 5000ms
– Thermal Coagulation Depth: Adjustable 1mm to 20mm
– Contact Cooling: -5°C to +5°C (Sapphire Tip surface)
– Interface: 10.4” Industrial Capacitive Touchscreen with Real-time Thermal Mapping.

Parameter	Specification
RF Technology	Bipolar + Monopolar + (Fractional Optional)
Output Power	0 – 400W (Peak)
RF Frequency	1.0 / 3.0 / 5.0 MHz (Software-selectable)
Cooling System	TEC + Sapphire Contact + Closed-Loop Water/Air
Pulse Width	100ms – 5000ms, Continuous Mode available
Dermal Penetration	Adjustable 1mm – 20mm (Impedance-dependent)
User Interface	10.4” High-res Capacitive Touchscreen with treatment memory
Dimensions (WxDxH)	450mm x 520mm x 1150mm (Console only)
Power Supply	AC 100-240V, 50/60Hz, 800VA Max
Warranty	2 Years Parts + 1 Year Labor (Extendable to 5 Years)

REGULATORY STANDARDS

– Medical Certification: CE 0476 (Class IIb), FDA 510(k) Cleared (K210xxx)
– Electrical Safety: IEC 60601-1, IEC 60601-2-2 (HF Surgical Equipment)
– Biocompatibility: ISO 10993-5 for all handpiece contact surfaces
– EMC Compliance: IEC 60601-1-2, 4th Edition
– Quality System: Manufactured under ISO 13485:2016 certified facility
– Environmental: RoHS 3 Compliant, REACH Compliant

TREATMENT VIEW

Standard clinical protocol for moderate rhytides (Crow’s feet, perioral lines):
1. Cleanse and degrease treatment area.
2. Apply conductive coupling gel (aqueous-based).
3. Select Monopolar mode, 3.0MHz, 150J, 2000ms pulse.
4. Perform overlapping passes (3-6 passes) until target tissue impedance drop indicates 55°C.
5. Post-treatment: Apply soothing hydrogel. No downtime required.

Expected outcomes: Up to 35% wrinkle depth reduction after 3 sessions (4 weeks apart), with continued improvement over 6 months due to Type I/III collagen remodeling.

DISCLAIMER: This document represents a reference architecture for a generic OEM platform. Actual clinical results may vary based on patient skin type (Fitzpatrick I-VI), operator technique, and compliance with aftercare protocols.
