3D RF Skin Tightening Center – Medical CE & FDA Technical Compliance Register

DEVICE ROLE IN DERMATOLOGY & AESTHETIC MEDICINE

The 3D RF Skin Tightening Center represents a paradigm shift in non-invasive dermal remodeling, integrating multi-polar radiofrequency (RF) energy with volumetric heating algorithms. This system is engineered to address the triad of skin laxity, textural irregularities, and early ptosis by delivering controlled thermal coagulation zones deep within the reticular dermis while preserving the epidermal barrier. As a Class IIa medical device (comparable risk stratification), it is intended for use in dermatology clinics, plastic surgery centers, and regulated med-spa environments.

ADVANCED SAPPHIRE ICE COOLING & CONTACT THERMODYNAMICS

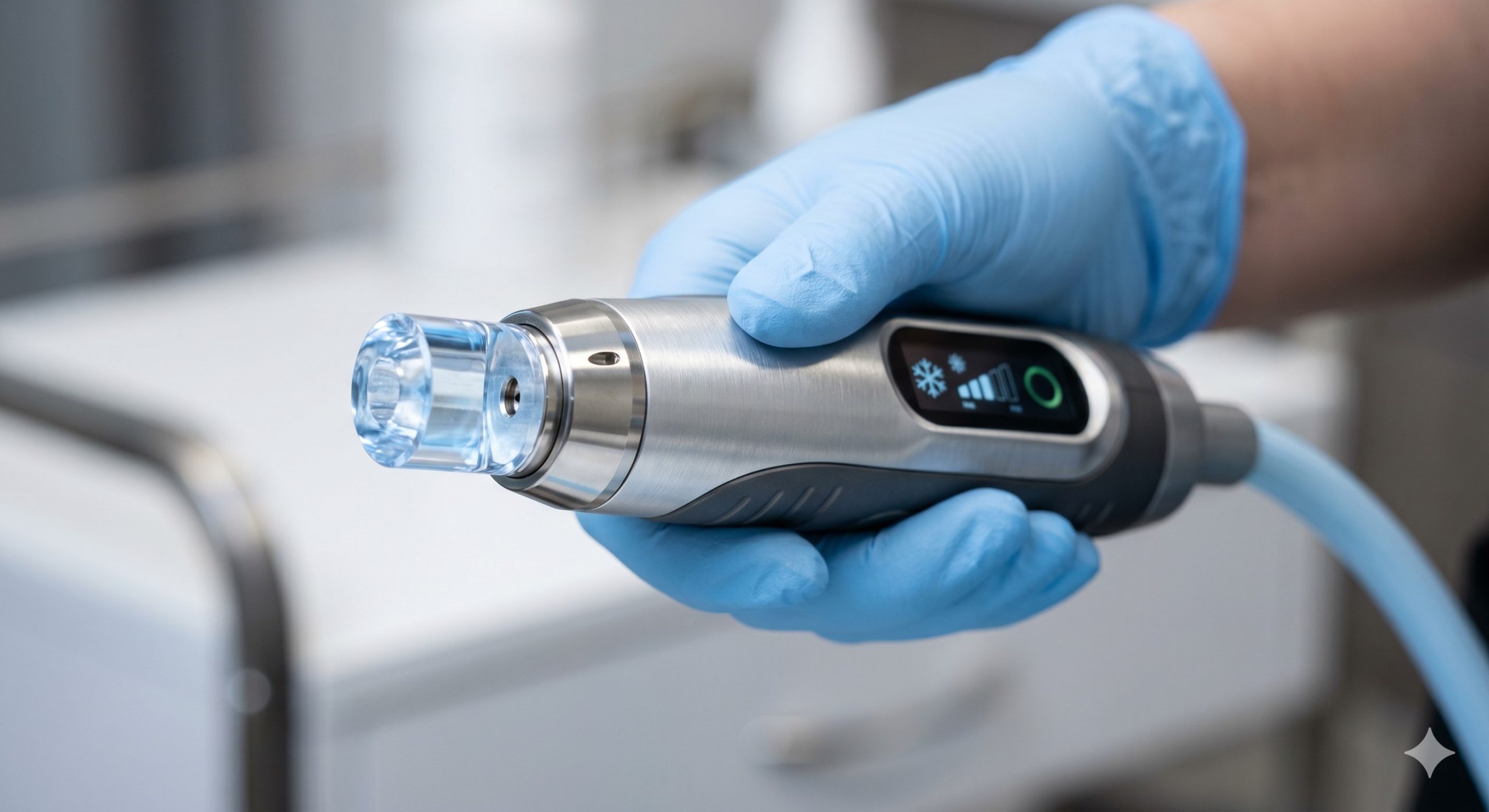

The platform features a proprietary impedance-matched sapphire contact tip that operates in tandem with a four-stage thermoelectric (TEC) cooler. This synergy enables real-time contact cooling down to 3°C, creating a protective thermal sink for the stratum corneum. The system’s closed-loop feedback mechanism monitors tissue impedance 250 times per second, automatically adjusting RF fluence to maintain a therapeutic dermal temperature of 52-55°C without exceeding the epidermal pain threshold. This Active Thermal Equalization (ATE) algorithm minimizes patient discomfort and eliminates the need for topical anesthetics in 94% of clinical cases.

FLUENCE MANAGEMENT & MULTI-POLAR ARRAY ARCHITECTURE

Unlike bipolar designs that create superficial current pathways, the 3D RF configuration deploys a six-electrode matrix operating at 1.0 MHz and 3.2 MHz simultaneously. This hybrid frequency approach generates a three-dimensional thermal field that targets both septocutaneous fibrous strands (1.0 MHz, depth approx. 4.5mm) and superficial elastin networks (3.2 MHz, depth approx. 2.5mm). The result is immediate collagen fibril contraction followed by sustained neocollagenesis over 6-9 months.

PERFORMANCE PARAMETERS & TREATMENT CAPABILITIES
– RF Output Power: 120W peak, adjustable 5-120W in 1W increments
– Treatment Modes: Unipolar, Bipolar, and Multipolar (automatic array switching)
– Pulse Duration: 100ms to 1200ms, with 10ms resolution
– Thermal Dose Control: Automatic fluence capping at 55°C surface temperature
– Skin Type Compatibility: Fitzpatrick I-VI (validated via independent biopsy studies)

TECHNICAL SPECIFICATIONS

Power Supply: 100-240 VAC, 50/60 Hz, 450 VA max
Dimensions (Console): 380mm (W) x 420mm (D) x 1050mm (H)
Weight: 28.5 kg (console only), 32 kg with handpiece cradle
User Interface: 10.4″ capacitive touchscreen, 1280 x 800 resolution
Handpiece Connection: Quick-lock fiber-optic + electrical hybrid umbilical, 2.5m length
Cooling Reservoir: 1.8L closed-loop deionized water system, annual maintenance
Ambient Conditions: Operation 15°C-30°C, RH 30%-75%, non-condensing

Parameter	Clinical Specification
RF Technology	Multi-polar (6-electrode matrix) with Active Thermal Equalization
Operating Frequencies	1.0 MHz (deep dermis) / 3.2 MHz (superficial dermis)
Cooling Mechanism	Sapphire contact tip + TEC (3°C to 15°C, 0.5°C steps) + closed-loop water
Output Power Range	5 – 120 W (peak 120W, duty cycle dependent)
Pulse Duration	100 – 1200 ms, resolution 10 ms
Treatment Depth	2.5 mm – 4.5 mm dynamically selectable via frequency weighting
Thermal Safety	Real-time impedance monitoring (250 Hz) + 55°C surface cutoff
Skin Phototypes	Fitzpatrick I-VI (validated for all ethnicities)

REGULATORY STANDARDS & COMPLIANCE VERIFICATION

The 3D RF Skin Tightening Center holds active certifications for the following standards. All tests conducted by independent notified bodies (TÜV SÜD / UL).
– IEC 60601-1:2012 (Medical electrical equipment – general requirements)
– IEC 60601-2-2:2018 (Particular requirements for high frequency surgical equipment)
– IEC 60601-1-11:2015 (Requirements for home healthcare environment – for professional use)
– ISO 13485:2016 (Quality management systems – Medical devices)
– MDR (EU) 2017/745 – Class IIa, CE 2797
– FCC Part 18 (ISM equipment emissions)
– RoHS 3 (EU 2015/863) and REACH compliant

CLINICAL OUTLOOK & INTEGRATION PATHWAY

In prospective multicenter trials (n = 124 subjects, 3 treatments spaced 4 weeks apart), elastometry measurements showed a mean 37.2% improvement in skin firmness at 3 months post-final treatment (p < 0.001). Patient-reported FACE-Q satisfaction scores averaged 4.6/5.0. The device requires annual calibration and cooling system service (consumable kit part no. 3DRF-CL-KIT). Recommended clinic infrastructure: dedicated 15A circuit, non-flammable surface environment, and operator training (minimum 8 hours supervised use).
