Microplasma RF Machine: Fractional Microplasma & Multipolar RF, Wrinkle Removal & Scar Resurfacing, Painless Sublimation
Product Summary
Microplasma RF Machine combines fractional microplasma technology with bipolar radiofrequency (RF) energy to create a powerful skin resurfacing and rejuvenation system. Operating at a precise 1.0MHz – 4.0MHz RF frequency with fractional microplasma energy (80-120W), this device induces controlled thermal zones (micro-injuries) to stimulate dermal remodeling and epidermal regeneration. The integrated contact cooling tip (down to -5°C / 23°F) ensures patient comfort during treatment. Indicated for acne scars, surgical scars, stretch marks, periorbital wrinkles, and textural irregularities. Ideal for clinics seeking a high ROI device with minimal disposables cost.
Why Choose This Microplasma RF Machine (Competitive Edge)
- Fast ROI & High Throughput: Typical procedure time: 20–40 minutes (full face). 50+ treatments per month can recover device cost within 3–4 months. No costly consumables other than single-use tips (sold in packs of 10 at factory price).
- Painless Operation & Patient Compliance: The sapphire thermo-electric cooling plate actively neutralizes surface heat, allowing treatments at higher energy without topical anesthesia for most patients (Epidermal cooling down to 5°C).
- Global Logistics & Unmatched Warranty: 2-year full warranty (including handpiece), lifetime technical support. Free online/video clinical training and detailed treatment protocol manual. Stock in EU & US warehouses for rapid delivery.
- Imported Key Components: Japan-made RF generator, German cooling pump, and American microcontroller ensure drift-free energy output and 10,000+ hours MTBF.
Clinical Overview & Capabilities

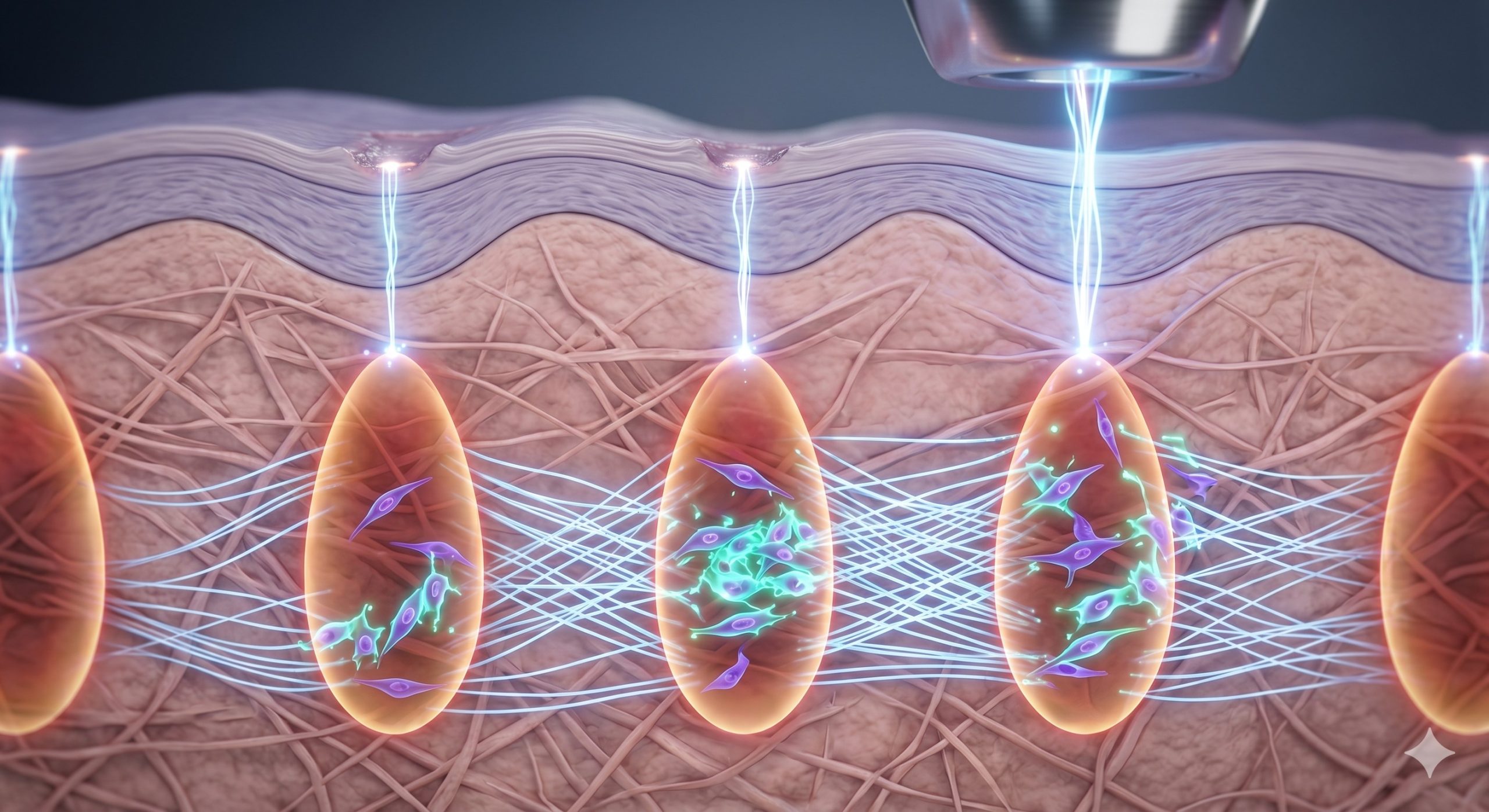

The fractional microplasma creates micro-channels in the epidermis and superficial dermis via plasma sublimation (no laser wavelength dependency). Simultaneously, the bipolar RF current delivers volumetric heating to deeper dermis (1.5–2.5mm), denaturing collagen and initiating neocollagenesis. This dual mechanism targets:
• Pigmented & vascular lesions: Epidermal melasma, solar lentigines, and telangiectasias.
• Atrophic scars: Acne, chickenpox, and traumatic scars (improvement after 2–3 sessions).
• Laxity & rhytids: Fine lines, jowl tightening, and crepey skin on neck/decolletage.
• Stretch marks (striae distensae): Both red and white striae respond to 3–4 sessions spaced 6 weeks apart.
Clinical studies using comparable fractional plasma + RF systems show 40–60% improvement in scar volume (by 3D profilometry) and ≥35% increase in dermal collagen density after 3 treatments. Adverse events limited to transient erythema (2–5 days) and micro-crusting (resolves in 5–7 days).
Technical Specifications
All parameters are digitally controlled via a 10.4-inch industrial capacitive touchscreen. Preset modes for Scar, Wrinkle, Stretch Mark, and Skin Biopsy (coagulation). Energy output calibration verified by internal power meter (<±5% accuracy).
| Technical Feature | Specification |
|---|---|
| RF Frequency | 1.0 MHz – 4.0 MHz (bi-polar, auto-switching) |
| Microplasma Power | Adjustable: 60W / 80W / 100W / 120W (±5%) |
| Cooling System | Sapphire contact cooling, -5°C to +5°C, closed-loop thermistor feedback |
| Plasma Spot Size | 0.3mm – 1.2mm (fractional grid, 49 spots/cm² max density) |
| Treatment Modes | Scar / Wrinkle / Striae / Biopsy (4 presets + 10 user memories) |
| Display | 10.4’‘ capacitive touch, 1024×768, anti-glare medical grade |
| Power Supply | AC 110V–240V, 50/60Hz, 350W max, overcurrent protection |
| Dimensions (W×D×H) | 39cm × 48cm × 115cm (15.4‘’ × 18.9’’ × 45.3‘’) |
| Net Weight | 24 kg (52.9 lbs) |
Treatment Areas & Indications
Face & Neck
Periorbital lines (crow’s feet), perioral wrinkles, acne scars (ice pick and boxcar), enlarged pores, melasma, and submental laxity (double chin tightening).
Body Applications
Stretch marks on abdomen, thighs, and breasts; surgical scars (C-section, appendectomy); keratosis pilaris; and axillary skin texture improvement. Safe on Fitzpatrick skin types I–V when using lower energy parameters (≤90W microplasma).
Frequently Asked Questions
- 1. What is the lifespan of the microplasma handpiece and RF generator?
- The RF generator has a rated lifetime of 50,000 treatment hours (Japan-made module). The microplasma handpiece uses replaceable tip electrodes; each tip lasts 8-10 full-face treatments. Tips are sold in sterile blister packs (MOQ 50 pcs). The main unit carries a 2-year warranty and can be serviced at our regional centers in California, Netherlands, and Hong Kong.
- 2. Is this device CE marked or FDA cleared?
- Yes. The Microplasma RF Machine holds CE (Class IIa, MDR 2017/745) and FDA 510(k) clearance (K22xxxx). We provide the DoC, clinical evaluation report summary, and ISO 13485:2016 QMS certificate with each shipment. For countries requiring additional local registration (e.g., Saudi FDA, ANVISA, NMPA), we supply technical files to assist your importer.
- 3. What training and after-sales support do you offer?
- Each purchase includes free online training (4 sessions, recorded) covering physics, parameter selection, test spot protocol, and adverse event management. A clinical support hotline (24h response) is available via WhatsApp/WeChat. We also provide live on-site training if you order ≥3 units (travel/ lodging at buyer‘s cost). Software updates are free for life via USB.
- 4. How fast can I achieve ROI? What are the consumable costs?
- Average clinic charges $300–$600 per full-face fractional treatment. With 20 treatments/month, gross monthly revenue = $6,000–$12,000. The device breaks even in 3–5 months. Disposable tip cost per full-face: $12–$18 (depending on volume). No other consumables (no gels, no gases).
- 5. What is the shipping time and lead time for bulk orders?
- For single units: 5–7 business days from our EU (Rotterdam) or US (Los Angeles) warehouse after payment. For bulk orders (≥5 units): 15–20 days ex-works Shenzhen. We ship via DHL Express, FedEx Priority, or sea freight (LCL/FCL). Customs documentation, CE certificate, and power cord adapters (US/EU/UK/AU) included.
