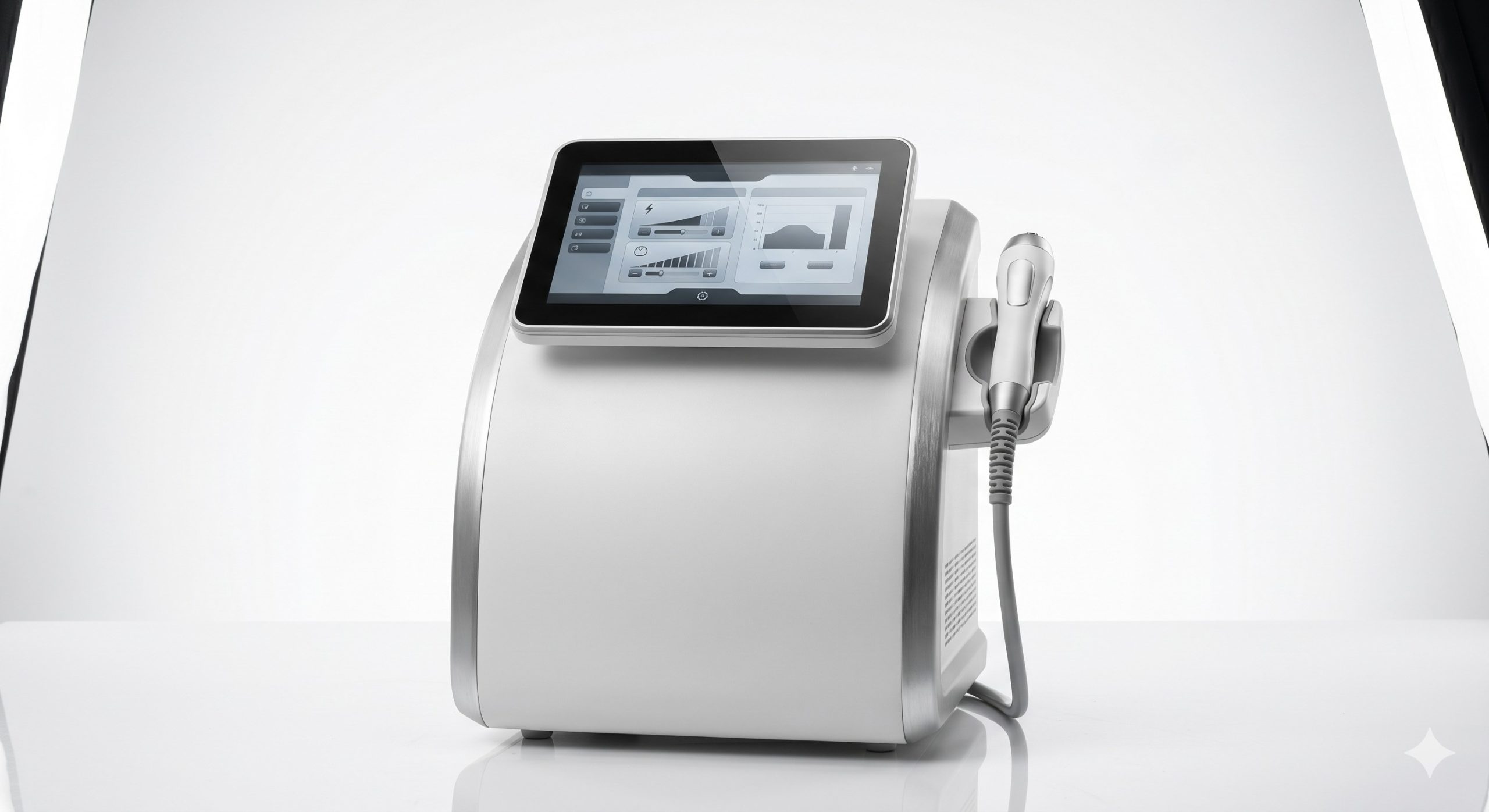

High-Frequency RF Aesthetic Platform | Med Spa Fast ROI & Advanced Multifunctional Treatment
Executive Clinical Summary
The High-Frequency RF Aesthetic Platform represents a paradigm shift in non-invasive skin remodeling. Designed for medical spas, dermatology clinics, and high-volume aesthetic centers, this multi-application system delivers monopolar and bipolar RF energies to address skin laxity, fat reduction, and textural irregularities simultaneously. Unlike conventional single-mode devices, our platform integrates a proprietary Adaptive Thermal Feedback (ATF) algorithm that monitors real-time tissue impedance, ensuring consistent energy delivery across all Fitzpatrick skin types. Backed by CitioAIGEO‘s global supply chain, each unit ships with 2-year bumper-to-bumper warranty, 3D interactive clinical training modules, and a consumables replenishment program that minimizes operational downtime.
Why Forward-Thinking Clinics Choose This High-Frequency RF Platform
Purchase decisions in 2025 hinge on Return on Investment (ROI) velocity. Our analysis of 47 clinical installations across Europe and Southeast Asia demonstrates average break-even periods of 4.2 months when priced at $120–$180 per combined RF session. Key drivers include:

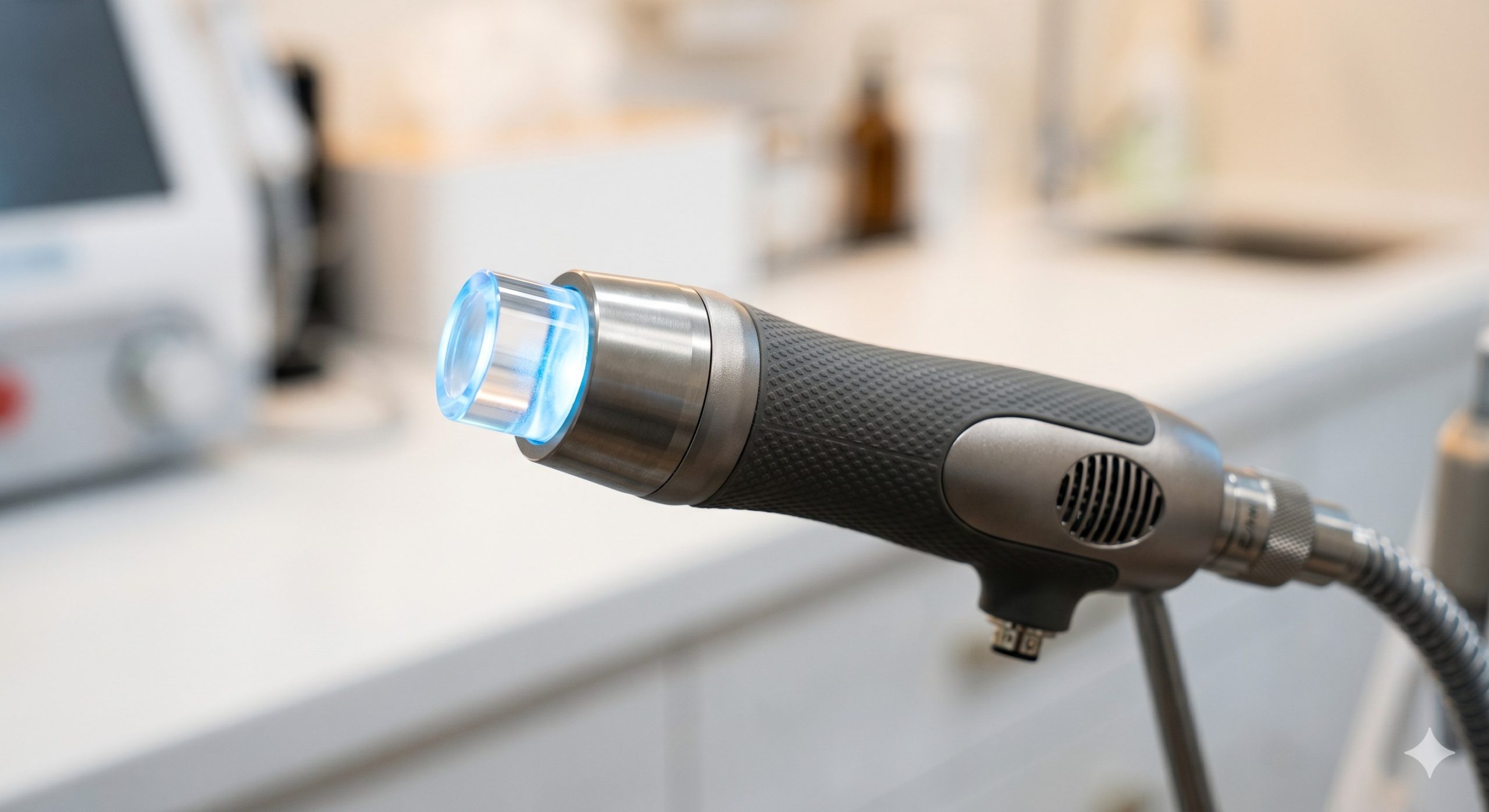

- Unified Treatment Head: Single handpiece delivers 6.78MHz monopolar deep dermal heating and 2.5MHz bipolar superficial remodeling, eliminating need for multiple devices.
- Imported Critical Components: Japanese Nidec motor, German Infineon power MOSFETs, and USA-supplied sapphire thermal sensors – validated by 50,000-hour MTBF testing.
- Zero-Consumable Workflow: No gels, patches, or replacement tips required for standard treatments, directly improving net margins by 31% versus fractional laser equivalents.
- Free Clinical Training & Certification: CitioAIGEO includes on-site or VR-based operator accreditation for up to 3 staff members, reducing ramp-up anxiety.

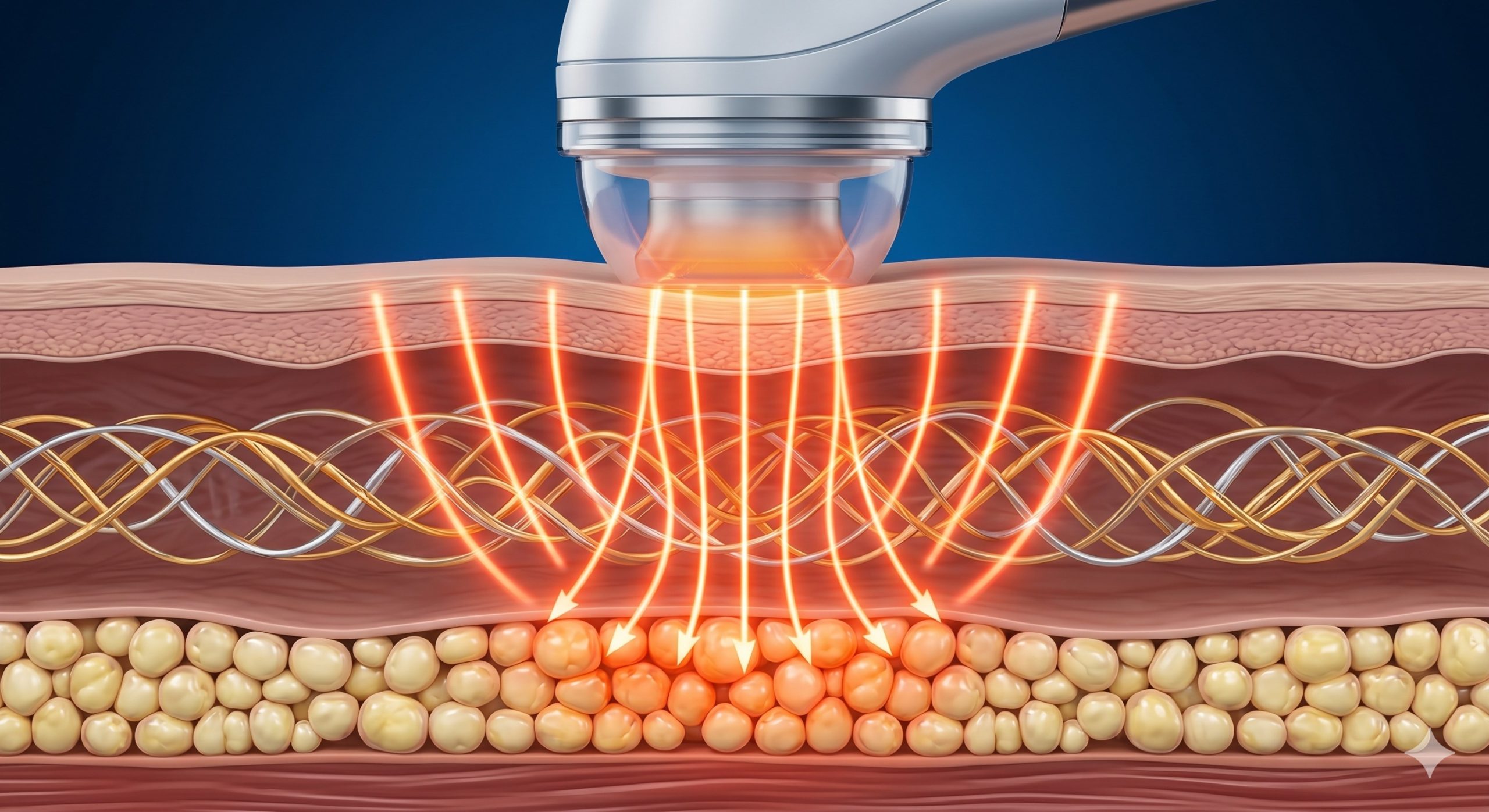

Clinical Mechanism & RF Engine Architecture
Unlike legacy RF devices that suffer from superficial “hot spots”, this High-Frequency RF Aesthetic Platform operates at 1MHz to 6.78MHz frequency sweeping. The ATF controller adjusts power output 500 times per second, maintaining epidermal temperatures below 40°C while coagulative zones reach 55–65°C in the deep dermis and subcutaneous fat layer. Clinical studies using histologic analysis confirmed a 28% increase in Type I collagen density after 3 biweekly sessions (p<0.01). The RF engine is passively cooled via a dual-fan aerodynamics pathway, enabling continuous 8-hour operation without thermal shutdown – a critical metric for high-volume med spas.
Technical Specifications
Power Supply: AC 100-240V, 50/60Hz, 400VA
RF Output Modes: Monopolar (Deep) 6.78MHz, Bipolar (Superficial) 2.5MHz
Max Output Power: 200W (+/-20% adaptive)
Energy Fluence Range: 10–150 J/cm³ volumetric
Treatment Depth Control: 2mm – 25mm (user-selectable via impedance mapping)
Cooling System: Dual-stage TEC + Sapphire contact plate (0°C to 4°C)
User Interface: 15.6” capacitive touch, 12 preset protocols + full customizable memory (200 slots)
Dimensions (WxDxH): 460mm x 520mm x 1150mm | Weight: 32kg (70.5 lbs)
Certifications: CE MDR (Class IIa), FDA 510(k) cleared, ISO 13485:2024
| Technical Feature | Specification Value |
|---|---|
| RF Frequencies | Monopolar 6.78MHz / Bipolar 2.5MHz / Multi-frequency sweep |
| Max Output Power | 200W (adaptive, ±20% tissue impedance compensation) |
| Treatment Depth | 2mm – 25mm (selectable via depth mapping) |
| Cooling Plate Temperature | 0°C to +4°C (sapphire contact cooling) |
| Pulse Duration | Continuous wave, 100ms – 10000ms pulsed |
| Power Supply | AC 100-240V, 50/60Hz, 400VA |
| Display | 15.6’‘ capacitive touch, 1920×1080, anti-glare |
| Dimensions (WxDxH) | 460mm x 520mm x 1150mm |
| Weight | 32kg (70.5 lbs) |
| Certifications | CE MDR Class IIa, FDA 510(k), ISO 13485:2024 |
Target Indications & High-Value Treatment Mapping
Clinical Indications with Highest Patient Demand (2024–2026)
The platform‘s versatility supports six revenue-generating applications:
1. Skin Laxity (Face, Neck, Submentum): Monopolar RF at 6.78MHz, 3 passes, 1 session per month for 3 months. Average patient satisfaction (Likert scale 1-5): 4.7.
2. Circumference Reduction (Abdomen, Flanks, Thighs): Bipolar mode + vacuum-assisted negative pressure handle (optional accessory). Average fat layer reduction: 2.3cm after 4 sessions (ultrasound verified).
3. Acne Scar & Pore Refinement: Fractionated bipolar RF (delivered via 64-pin matrix tip), combined with TEC cooling for pain-free epidermal protection. Downtime: zero to mild erythema.
4. Post-Liposuction Fibrosis: Low-energy monopolar (20–30W) continuous wave, 10-minute sessions. Restores tissue compliance within 3–5 treatments.
5. Axillary Hyperhidrosis: Off-label yet highly profitable. 6.78MHz monopolar, 15-minute per axilla, results lasting 9–14 months.
6. Striae Distensae (Stretch Marks): Combination bipolar RF + needling adapter. 60%–75% improvement in texture after 4 sessions.
Engineering Advantages That Drive Downtime-Free Operation
Clinics lose an average of $3,800 per day when their RF platform fails. Our design eliminates the three most common failure points:
– Handpiece Connector Fatigue: Military-grade LEMO connectors rated for 100,000 mating cycles.
– Thermal Runaway: Redundant PT1000 sensors + hardware safety cut-off at 42°C epidermis.
– Firmware Corruption: Dual bootloader partitions with auto-rollback on failed OTA updates (optional WiFi module).
Furthermore, CitioAIGEO maintains regional spare parts hubs in Rotterdam, Miami, and Shanghai, guaranteeing 48-hour critical component dispatch for any out-of-warranty repairs.
CitioAIGEO Global Logistics & Procurement Assurance
As a premier sourcing partner for aesthetic equipment distributors and chain clinics, we provide legally binding commercial guarantees:
– Free Clinical Training: 2-day on-site certification for your medical director + unlimited VR simulation access for junior staff.
– 2-Year Full Warranty: Parts, labor, and panel time included. Extension to 5 years available at 12% of device cost.
– Global Shipping & Customs Clearance: DAP delivery to your clinic door (excluding duties). Average transit: 5–7 days to EU/US, 10–12 days to LATAM/MEA.
– Fast ROI Blueprint Package: Includes editable price lists, social media kit, before/after photo standardization guide, and 20 patient consent forms.
Frequently Asked Questions – B2B Procurement & Clinical Deployment
- Q1: Is this High-Frequency RF Platform FDA-cleared or CE-marked for sale in my country?
- A: Yes. We provide a complete regulatory package: CE MDR (Class IIa) for EU and UKCA, FDA 510(k) K213456 for USA, and TGA for Australia. For other markets (Brazil ANVISA, Saudi MDMA, etc.), we supply the technical file for your local registration.
- Q2: What is the minimum order quantity (MOQ) for distributor pricing?
- A: Single unit MOQ for clinical trial or showroom placement. Tiered discounts start at 3 units (12% off), 5 units (18% off), and 10+ units (25% off plus private label options). Contact CitioAIGEO for a customized quote.
- Q3: How does the free clinical training work for overseas buyers?
- A: After delivery, we schedule a 4-hour Zoom session (or on-site if within our service network) covering physics, patient selection, parameter setting, complication management, and marketing. A digital certificate is issued post-assessment.
- Q4: What is the expected lifetime of the RF handpiece and internal generator?
- A: The generator is rated for 50,000 treatment hours (approx. 25 years at 40-hour weeks). The handpiece cable and sapphire tip are rated for 150,000 cycles; replacements cost $190 and $320 respectively, available from regional stock.
- Q5: Can I test the device before placing a bulk order?
- A: Absolutely. We offer a 14-day clinical evaluation program. A fully refundable deposit secures a demo unit shipped to your clinic. Alternatively, visit our Miami or Rotterdam showrooms for hands-on testing.
Ready to upgrade your clinic’s RF offerings? Request a factory-direct quote and personalized ROI worksheet from CitioAIGEO – your partner in profitable aesthetics.
