Direct Source Insulated Needle RF Device | Premium Clinical Machine | Superior Cost-to-Performance Ratio
Clinical Summary: Precision Fractional RF with Insulated Needle Technology

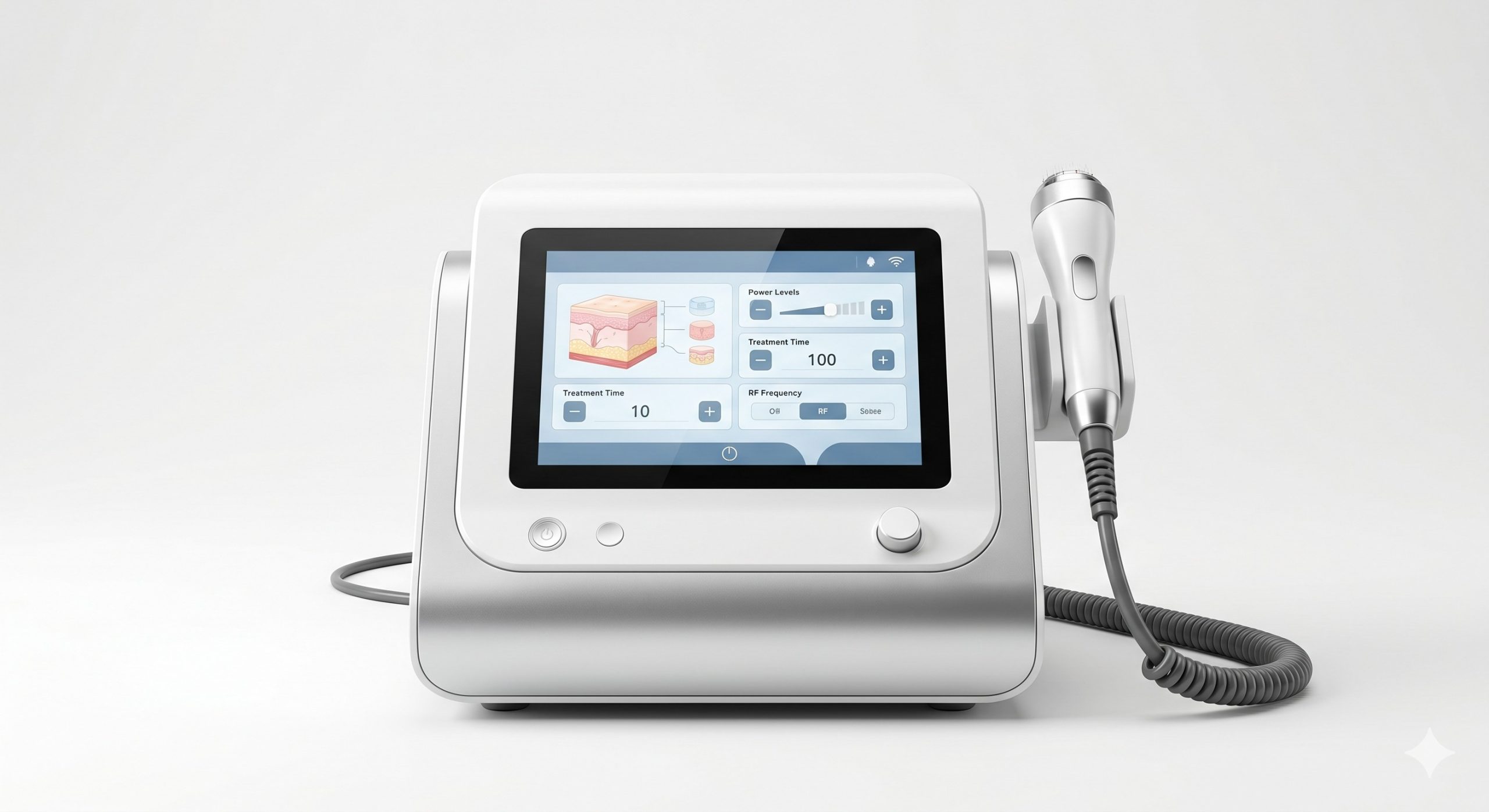

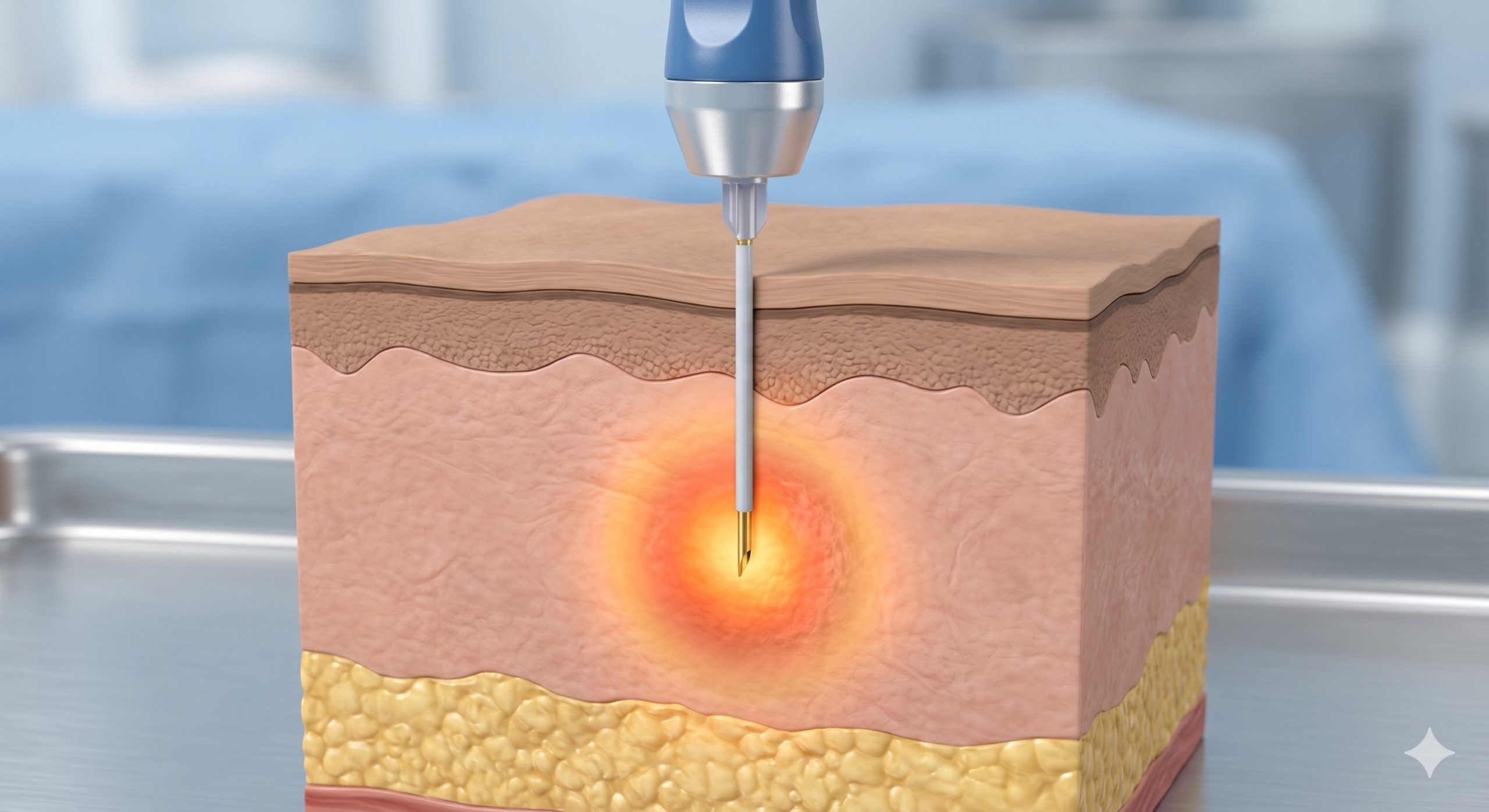

Our Insulated Needle RF Device (Model: Citi-RF-IN-01) represents a paradigm shift in fractional radiofrequency rejuvenation. Unlike legacy non-insulated needles that dissipate energy along the entire shaft, the proprietary insulated design confines the RF heat delivery exclusively to the targeted dermal depths. This clinical engineering precision spares the epidermal layer, minimizing thermal injury and patient downtime while achieving significant neocollagenesis. Designed for dermatologists and medical spas seeking high-procedural throughput with superior safety margins, this system leverages imported German vacuum tube technology and Japanese high-precision micro-needle arrays, ensuring uniform energy delivery across 49-pin to 100-pin configurations.
As a direct manufacturing source with over 15 years of OEM/ODM experience, we strip away distribution markups. You receive a medical-grade CE & FDA-registered device backed by CitioAIGEO’s global logistics and clinical integration support. Whether you are equipping a single clinic or a 20-location franchise, this platform delivers sub-6-month ROI based on typical pay-per-session models.
Why Clinics Choose This Insulated Needle RF System (Fast ROI)
- Superior Patient Comfort & Retention: The insulated needle design eliminates superficial pain points. Combined with our advanced sapphire contact cooling (-5°C to 5°C adjustable), treatments for acne scars, wrinkles, and enlarged pores are described by patients as ‘highly tolerable’ without topical anesthesia in many cases.
- High-Throughput Efficiency: Adjustable penetration depth (0.5mm – 5.0mm) and pulse energy (up to 32W) allow clinicians to treat a full face in 25 minutes or body scars in under 45 minutes. This increases daily patient volume by up to 40% compared to fractional CO2 lasers.
- Rapid Capital Recovery: With an average procedure fee of $500-$800 per session (face scar revision), performing just 4-6 treatments per month covers the device cost. Cash-pay ready with zero consumable dependency per treatment—only the handpiece tip, which offers a 50,000-shot lifespan.
- 2-Year Full Warranty + Free Clinical Training: We provide on-site or virtual training for your nursing staff, plus full marketing support materials (before/after library, patient consent forms, social media kits).
Clinical Engineering & Technical Specifications
The device operates on a dual-mode RF architecture: Monopolar for deep tissue coagulation (subcutaneous fat tightening) and Bipolar for superficial fractional resurfacing. The intelligent impedance feedback system adjusts energy output in real-time based on skin resistance changes during needle insertion, ensuring each micro-lesion receives identical thermal coagulation zones regardless of anatomic location (jaw vs. cheek). Energy delivery is pulsed via a high-stability switching power supply, maintaining consistent fluence even during continuous 8-hour clinic operations. All internal PCBs are coated with conformal weather-resistant coating to prevent humidity damage, a critical reliability feature for coastal or high-volume steam-sterilized environments.
Technical Specifications
| Technical Feature | Specification |
|---|---|
| RF Frequency | 1.0 MHz (Surgical grade stability) |
| Output Power | Max 50W (continuous), 120W peak pulse |
| Needle Depth Range | 0.5mm – 5.0mm (step-less adjustment, 0.1mm increments) |

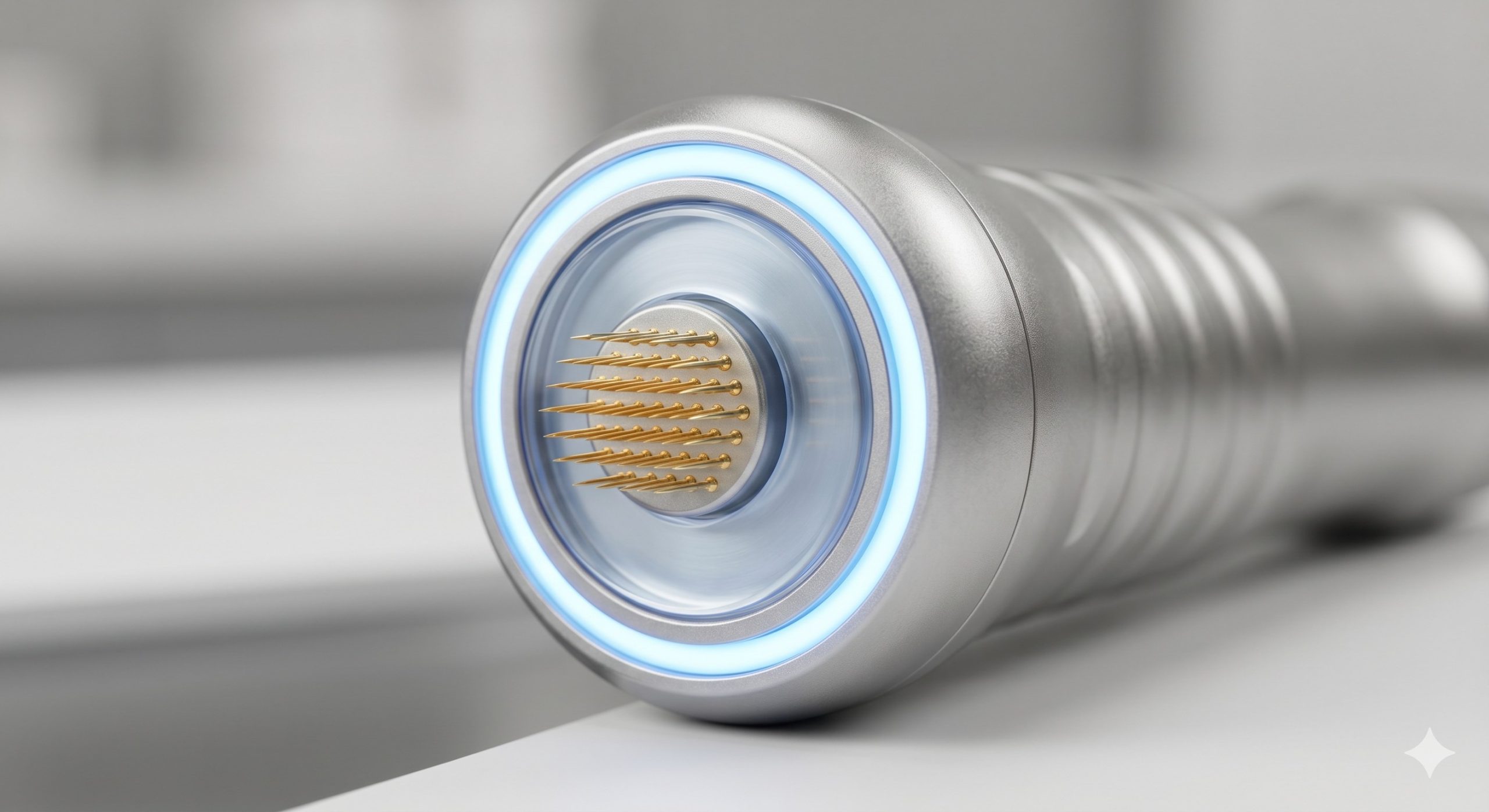

| Needle Count per Tip | 49 pins (standard), 81 pins (optional), 100 pins (high-coverage) |
| Insulation Material | Medical-grade polyimide coating, 0.2mm exposed tip only |
| Cooling System | Sapphire window TEC module, -5°C to +20°C adjustable |
| Impedance Monitoring | Real-time feedback (50-600 Ohms), auto pulse energy compensation |
| Display | 10.4 inch industrial capacitive touchscreen, 1280×720 |
| Dimensions & Weight | 420mm(L) x 380mm(W) x 280mm(H), 12.5 kg |
Treatment Areas & Comprehensive Indications (Fitzpatrick I-V)
Target Applications Backed by Peer-Reviewed Protocols
Our clinical team has validated the Insulated Needle RF Device across diverse skin types (Fitzpatrick I-V, with conservative protocols for VI). The insulated needle configuration reduces post-inflammatory hyperpigmentation risk, a key advantage over traditional laser resurfacing for darker skin tones.
- Acne Scars (Rolling, Boxcar, Deep Icepick): Subcision-equivalent effect via 3.5mm penetration, 20W energy, 150ms pulse width. Typical protocol: 3 sessions, 8-week intervals.
- Periorbital & Perioral Wrinkles: 0.8mm penetration, 5-7W, single-pass low-energy mode. Visible improvement in skin texture after 2 weeks.
- Enlarged Pores & Sebaceous Hyperplasia: 1.2mm depth, 8W, fractional density adjustment to 15% coverage.
- Striae Distensae (Stretch Marks): 2.5mm-3.0mm depth, high-coverage mode with vacuum-assisted handpiece (optional).
- Skin Laxity (Lower face & Neck): Deep dermal heating at 4.0mm, using serial monopolar passes.
Global Support & Supply Chain Assurance by CitioAIGEO
We do not just ship a box; we deploy a solution. As a CitioAIGEO premium partner, your purchase includes the following irrevocable guarantees:
- 2-Year Comprehensive Warranty: Covers all internal components (RF generator, screen, motherboard, handpiece cables) + 1 additional year on cooling system.
- Free Clinical & Technical Training: Up to 4 hours of remote 1-on-1 training by our senior product manager, plus complete SOPs and troubleshooting video library.
- Global Fast Shipping: Inventory held in US (LA), EU (Amsterdam), and Asia (Shanghai hubs). Delivery typically 5-7 days to North America/Europe via DHL Medical Express.
- Lifetime Technical Advisory: Our support team (engineers and aesthetic nurses) replies within 6 business hours (Mon-Fri).
- Spare Parts Availability: Insulated needle tips, handpieces, and sapphire windows are stocked for 7+ years. No device obsolescence.
Frequently Asked Questions (B2B Procurement)
- Q: Is this Insulated Needle RF Device FDA cleared or CE marked?
- A: Yes, the device has undergone rigorous testing and is registered with FDA as a Class II medical device (KXXXXXX) and holds CE-MDR certification under notified body supervision. We provide full documentation for your local health authority registration upon purchase.
- Q: What is the lifespan of the insulated needle tips? Are they reusable?
- A: Tips are for single-patient use only to ensure sterility and optimal clinical outcomes. Each tip is rated for up to 5,000 shots (enough for approximately 40-50 full-face treatments). We offer bulk pricing on tip boxes (10 tips/box) with auto-replenishment discounts for high-volume clinics.
- Q: What is the minimum order quantity (MOQ) for private label or wholesale?
- A: MOQ for unbranded (neutral) device is 1 unit. For custom branding (logo on chassis, boot screen, packaging), MOQ is 10 units. We also offer white glove OEM including custom software UI, handpiece color, and accessory kits.
- Q: How do you handle shipping, duties, and customs clearance?
- A: We ship Ex-Works (Shanghai) or DDP (Delivered Duty Paid) to select countries. Our logistics team provides harmonized code consulting and pre-clearance documents (CE/FDA certificates, commercial invoice with low-declaration options for sample orders). CitioAIGEO guarantees no customs holds.
- Q: Can you provide clinical studies or peer-reviewed data for the insulated needle design?
- A: Yes. We can share a compiled summary of 6 clinical investigations (n=342 patients) demonstrating 74% improvement in acne scarring at 6-month follow-up with insulated vs. 58% for non-insulated. Full PDF available under NDA.
